[XiangShan Biweekly 97] 20260302

Welcome to XiangShan biweekly column! Through this column, we will regularly share the latest development progress of XiangShan. This is the 97th issue of the biweekly report.

Regarding the recent development progress of XiangShan, ~~the XiangShan team had a happy Chinese New Year holiday~~. For more details, please refer to the Recent Developments section. ~~But it's not all for nothing~~, we also prepared a little fun fact about the development of XiangShan for everyone.

A week of fighting with verilator

In the development of XiangShan, simulators are very important infrastructure. To implement the open-source philosophy, we have been using the open-source simulator verilator in the development and part of the verification work of XiangShan. Even now that we have our own simulator gsim, verilator still plays an irreplaceable role in functional verification, ~~because gsim does not support waveform dumping yet~~. In addition, during the development of gsim, verilator has always been an important reference platform to help us verify the correctness and performance of gsim.

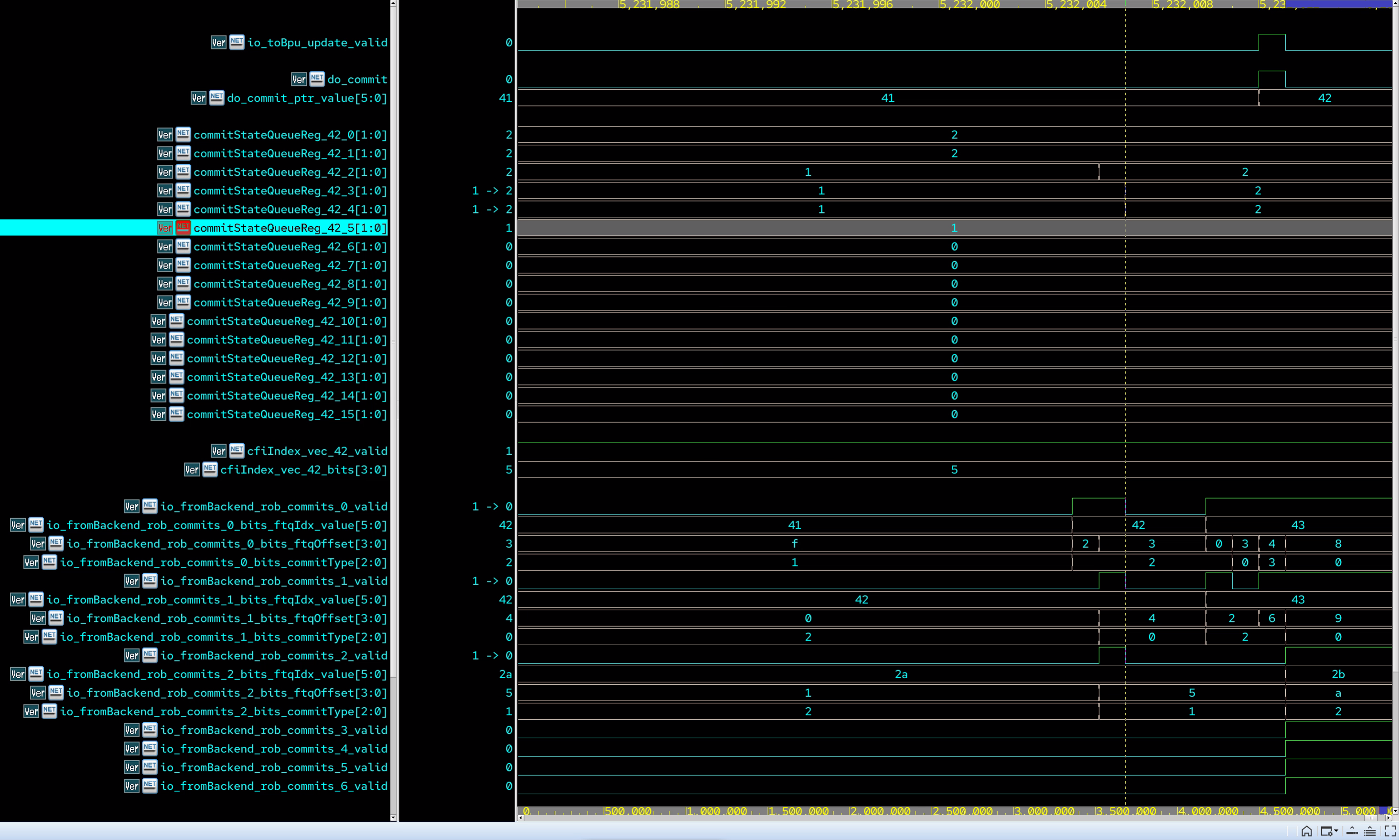

On an ordinary day, L was suddenly asked to take the blame for an assertion triggered in the frontend FTQ module. This would not be a big deal, ~~if this assert was not triggered on the master branch that has already been frozen for delivery~~. L happily opened the error waveform and after looking at it for a while, he felt something was wrong because the signal commitStateQueueReg_42_5 miraculously did not change, which caused FTQ to make wrong judgment on commit state.

L thought it must be the hallucination caused by taking too much blame. He pulled X to manually execute the verilog code together with him. However, unfortunately, X had the same hallucination as him, and it seemed that according to the logic of the verilog code, commitStateQueueReg_42_5 should change from 1 to 2 after the dashed line.

At this time, L and X judged that it must be a bug in verilator, but another X insisted that even if it is a bug in verilator, we should confirm it again, ~~otherwise how can we believe the verification so far is correct~~.

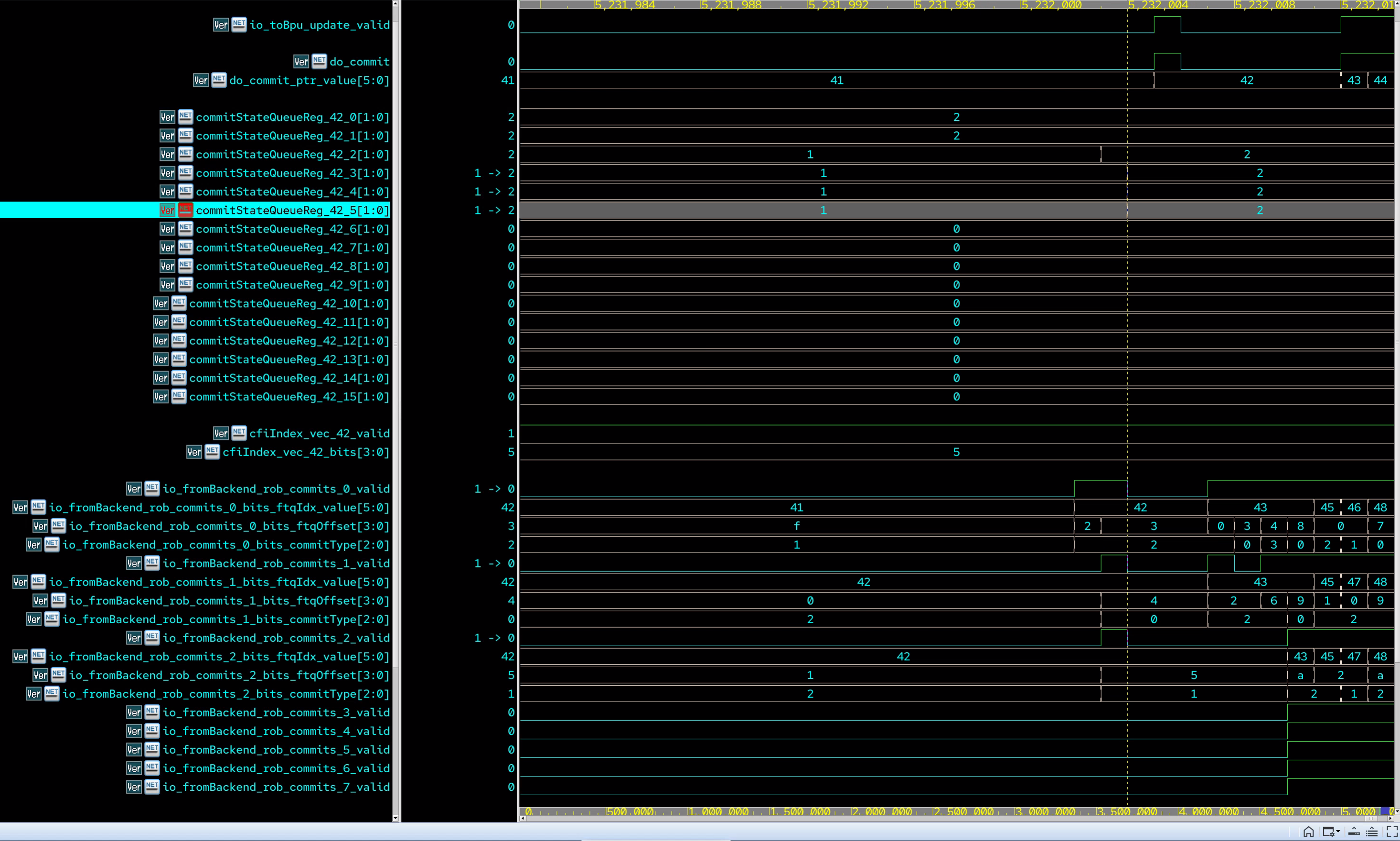

Since XiangShan is set with the --trace option, verilator will not print signals that start with an underscore, such as _GEN_350234, in the waveform. L decided to first replace all signals like _GEN_350234 in the FTQ module with GEN_350234, so that they can be seen in the waveform. After he generated the waveform again, he found that commitStateQueueReg_42_5 miraculously changed again, from 1 to 2 at the dashed line.

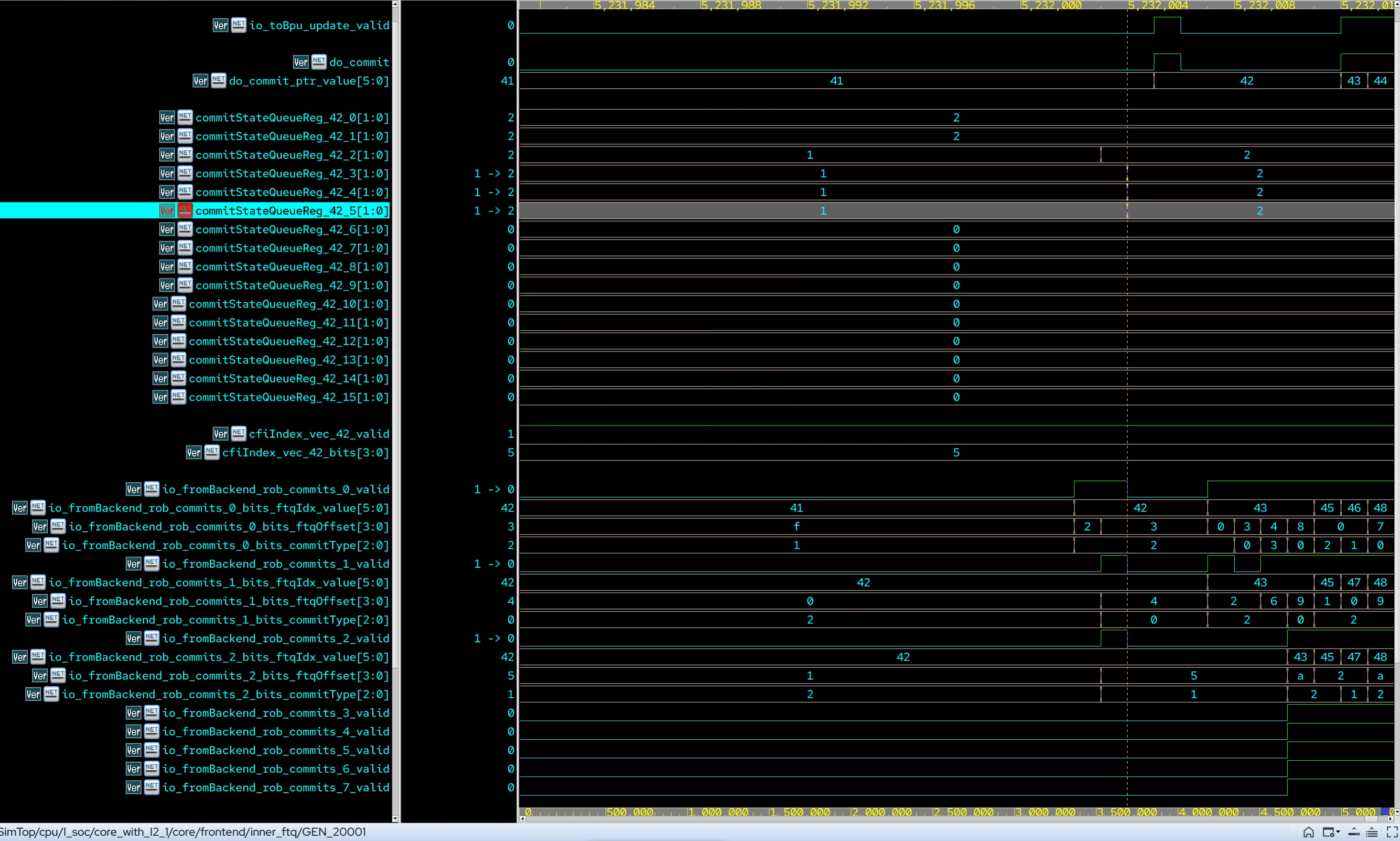

L was a bit frustrated. He replaced the --trace option with --trace-underscore, and without changing the code, printed all the underscore signals in the waveform, and found that commitStateQueueReg_42_5 also changed correctly.

L was completely frustrated. He did not want to look at the C++ code generated by verilator, and felt that this pot should not continue to be taken by him. He threw this problem to the verilator community and updated the verilator version. This problem did disappear, but whether it really disappeared or quietly hid deeper, let's wait until the next time we encounter it. L just felt that staring at the waveform for a week made his eyes almost blind.

Recent Developments

Frontend

Due to the Chinese New Year holiday, we don't have much progress. Some of the following progress has been mentioned in the 96th biweekly report, here we will supplement some of the state changes.

  • Mentioned in the last report, now merged
  • Bug fixes
    • Fix the training condition of SC which does not check whether MBTB is hit, and leads to training with invalid data (#5601)
  • Timing/Area optimization
    • Adjusting BPU s2 pipeline stage, with some information from MBTB given to TAGE earlier (#5614)
  • Newly merged
  • Bug fixes
    • Fix BPU s1 prediction selection logic, use utage as long as it is hit (#5611)
  • In progress
  • RTL features
    • Support branch-level prediction in UTAGE (#5513)
    • Support configurable threshold range (#5632)
  • Bug fixes
    • Fix the issue that saturate counters in MBTB baseTable are not updated when the branch is correctly predicted (#5602)
    • Fix history restore logic on s3 override (#5625)
  • Timing/Area optimization
    • Adjusting the pipeline stage of MBTB position comparison logic (#5603)
    • Adjusting the pipeline stage of UTAGE history information (#5517)
    • Fixing some serial logic inside SC (no PR for the moment)
    • Adjusting the pipeline stage of ICache parity check logic (no PR for the moment)
    • Further evaluation and fixes are ongoing
  • Code quality
    • Fix MBTB compile-time warning (#5543)

Backend

  • RTL new features
  • Provide a buffer for a uop when LDU cannot receive it (#5604)
  • Code quality
  • Split Og0InUop and Og1Uop for subsequent timing optimization (#5575)
  • Move the generation of imm32 for fusion instructions from rename to fusionDecoder (#5606)
  • Timing fixes
  • Move some signals from IQPayload to og1Payload (#5595)

MemBlock and Cache

  • RTL new features
  • The refactoring and testing of MMU, LoadUnit, StoreQueue, L2, etc. is ongoing
  • Code refactoring
  • (V2) Refactor difftest for vector store (#5587)
  • Debugging tools
  • Develop a verification tool CHI Test for the new version of L2 Cache. Continuous progressing

Performance Evaluation

Processor and SoC parameters are as follows:

Parameters Options
Commit 316946d28
Date 02/11/2026
L1 ICache 64KB
L1 DCache 64KB
L2 Cache 1MB
L3 Cache 16MB
LSU 3ld2st
Bus protocol CHI
Memory latency DDR4-3200

The SPEC CPU2006 scores are as follows:

SPECint 2006 @ 3GHz GCC15 XSCC GCC12 SPECfp 2006 @ 3GHz GCC15 XSCC GCC12
400.perlbench 47.47 46.45 43.61 410.bwaves 85.75 90.56 73.28
401.bzip2 27.12 27.83 27.51 416.gamess 56.30 52.50 54.94
403.gcc 50.86 37.33 51.30 433.milc 64.92 63.73 49.28
429.mcf 59.70 54.36 60.69 434.zeusmp 69.45 63.50 60.37
445.gobmk 35.66 36.59 37.44 435.gromacs 36.47 34.17 38.56
456.hmmer 53.69 63.60 43.52 436.cactusADM 75.62 86.54 53.69
458.sjeng 35.56 36.40 34.82 437.leslie3d 56.60 56.81 54.45
462.libquantum 135.55 285.26 133.21 444.namd 42.30 44.19 37.42
464.h264ref 62.47 71.27 63.01 447.dealII 63.89 67.16 64.28
471.omnetpp 40.89 39.25 43.04 450.soplex 49.21 57.92 53.33
473.astar 31.75 30.28 30.34 453.povray 72.35 66.59 61.60
483.xalancbmk 74.63 84.92 80.96 454.Calculix 44.24 39.20 19.43
GEOMEAN 49.54 52.67 48.92 459.GemsFDTD 64.85 64.68 46.68
465.tonto 51.73 34.73 36.69
470.lbm 126.78 132.83 104.98
481.wrf 55.26 41.58 48.68
482.sphinx3 58.58 61.17 55.05
GEOMEAN 60.58 58.50 50.80

Compilation parameters are as follows:

Parameters GCC12 GCC15 XSCC
Compiler gcc12 gcc15 xscc
Optimization level O3 O3 O3
Memory library jemalloc jemalloc jemalloc
-march RV64GCB RV64GCB RV64GCB
-ffp-contraction fast fast fast
Linker optimization - -flto -flto
Floating-point optimization - -ffast-math -ffast-math
-mcpu - - xiangshan-kunminghu

Note: We use SimPoint to sample the programs and create checkpoint images based on our custom checkpoint format, with a SimPoint clustering coverage of 100%. The above scores are estimates based on program segments, not full SPEC CPU2006 evaluations, and may differ from actual chip performance.

Editors: Zhihao Xu, Junxiong Ji, Zhuo Chen, Junjie Yu, Yanjun Li
