Level-2 Module: L2 TLB

L2 TLBWrapper refers to the following module:

L2TLBWrapper ptw, where L2TLBWrapper provides an abstraction layer for the L2 TLB.

L2 TLB refers to:

L2TLB ptw

Design specifications

This section describes the overall design specifications of the L2 TLB module. For the design specifications of submodules within the L2 TLB module, refer to the tertiary module section of this document.

Supports receiving PTW requests from L1 TLB
Support for Returning PTW Responses to L1 TLB
Supports signal and register duplication
Supports exception handling mechanism
Supports TLB compression
Supports two-stage address translation.

Function

L2 TLB is a larger page table cache shared by ITLB and DTLB. When an L1 TLB miss occurs, a Page Table Walk request is sent to L2 TLB. L2 TLB consists of Page Cache (see Section 5.3.7), Page Table Walker (see Section 5.3.8), Last Level Page Table Walker (see Section 5.3.9), Hypervisor Page Table Walker (see Section 5.3.10), Miss Queue (see Section 5.3.11), and Prefetcher (see Section 5.3.12).

Requests from L1 TLB first access the Page Cache. For non-two-stage address translation requests, if a leaf node is hit, it is directly returned to L1 TLB. Otherwise, based on the page table level hit in Page Cache and the availability of Page Table Walker and Last Level Page Table Walker, the request enters Page Table Walker, Last Level Page Table Walker, or Miss Queue (see Section 5.3.7). For two-stage address translation requests: if the request is onlyStage1, it is processed the same way as non-two-stage requests; if onlyStage2 and a leaf page table is hit, it is directly returned; if not hit, it is sent to Page Table Walker for translation; if the request is allStage, since Page Cache can only query one page table at a time, it first queries the first-stage page table. There are two scenarios: if the first-stage page table hits, it is sent to Page Table Walker for subsequent translation; if the first-stage page table does not hit a leaf node, it enters Page Table Walker, Last Level Page Table Walker, or Miss Queue based on the hit page table level and the availability of Page Table Walker and Last Level Page Table Walker. To accelerate page table access, Page Cache caches all three levels of page tables separately, allowing simultaneous queries (see Section 5.3.7). Page Cache supports ECC verification; if an ECC error is detected, the entry is refreshed, and Page Walk is restarted.

The Page Table Walker handles requests from the Page Cache to perform Hardware Page Table Walk. For non-two-stage address translation requests, it only accesses the first two levels (1GB and 2MB) of page tables, leaving 4KB page table access to the Last Level Page Table Walker. If the Page Table Walker reaches a leaf node (large page), it returns the result to the L1 TLB; otherwise, it forwards the request to the Last Level Page Table Walker for the final level of access. The Page Table Walker can only process one request at a time and cannot parallelize access to the first two levels. For two-stage address translation requests: (1) If it is an allStage request and the first-stage translation hits, PTW sends a second-stage request to the Page Cache. If it misses, the request is forwarded to the Hypervisor Page Table Walker, and the second-stage result is returned to PTW. (2) If it is an allStage request and the first-stage leaf node misses, PTW processing resembles non-virtualized requests, except that physical addresses encountered are guest physical addresses and require a second-stage translation before memory access (see the Page Table Walker module description for details). (3) For onlyStage2 requests, PTW sends a second-stage translation request externally and returns the response to L1TLB. (4) For onlyStage1 requests, PTW handles them internally the same way as non-virtualized requests.

The Miss Queue receives requests from the Page Cache and Last Level Page Table Walker, waiting for the next access to the Page Cache. The Prefetcher employs the Next-Line prefetching algorithm, generating the next prefetch request upon a miss or a hit on a prefetched entry.

Receives requests from L1 TLB and returns responses

As a whole, L2 TLB receives PTW requests from L1 TLB. PTW requests sent by L1 TLB are transmitted to L2 TLB through two levels of Repeaters. Depending on whether the request comes from itlbRepeater or dtlbRepeater, L2 TLB returns responses to itlbRepeater or dtlbRepeater, respectively. L2 TLB receives the virtual page number sent by L1 TLB and returns information including first-stage page tables, second-stage page tables, etc. The behavior of L2 TLB is transparent to L1 TLB, and only partial signal interfaces are required for interaction between L1 TLB and L2 TLB.

Sending PTW Requests to L2 Cache

The L2 TLB sends PTW requests to the L2 Cache via the TileLink bus, connected through the ptw_to_l2_buffer, which provides and receives relevant signals for TileLink A and D channels.

Signal and register duplication

Due to the large size of the L2 TLB module, signals such as sfence and csr registers need to drive multiple components, thus requiring the sfence signals and csr registers to be duplicated. Duplicating registers facilitates timing optimization and physical implementation without affecting functional implementation, as the duplicated content remains identical. The duplicated signals and registers can be used to drive components at different locations.

The replication scenarios and their respective driven parts are shown in 此表:

Signal replication status and drive components
Copy Signal	Serial number	drive component
sfence
	sfence_dup(0)	Prefetch
	sfence_dup(1)	Last Level Page Table Walker
	sfence_dup(2)	cache(0)
	sfence_dup(3)	cache(1)
	sfence_dup(4)	cache(2)
	sfence_dup(5)	cache(3)
	sfence_dup(6)	Miss Queue
	sfence_dup(7)	Page Table Walker
	sfence_dup(8)	Hypervisor Page Table Walker
csr
	csr_dup(0)	Prefetch
	csr_dup(1)	Last Level Page Table Walker
	csr_dup(2)	cache(0)
	csr_dup(3)	cache(1)
	csr_dup(4)	cache(2)
	csr_dup(5)	Miss Queue
	csr_dup(6)	Page Table Walker
	csr_dup(7)	Hypervisor Page Table Walker

Exception Handling Mechanism

Exceptions that may arise from the L2 TLB include: guest page fault, page fault, access fault, and ECC check errors. For guest page fault, page fault, and access fault, they are delivered to the L1 TLB, which handles them based on the request source. For ECC check errors, they are processed internally within the L2 TLB by invalidating the current entry, returning a miss result, and reinitiating Page Walk. Refer to Section 6 of this document: Exception Handling Mechanism.

TLB compression

After adding virtualization extensions, stage1 in L2TLB reuses the logic design of TLB compression, and the structure returned to L1TLB is also TLB-compressed. However, TLB compression is not enabled in L1TLB, while stage2 does not adopt the TLB compression structure and only returns a single page table during resp.

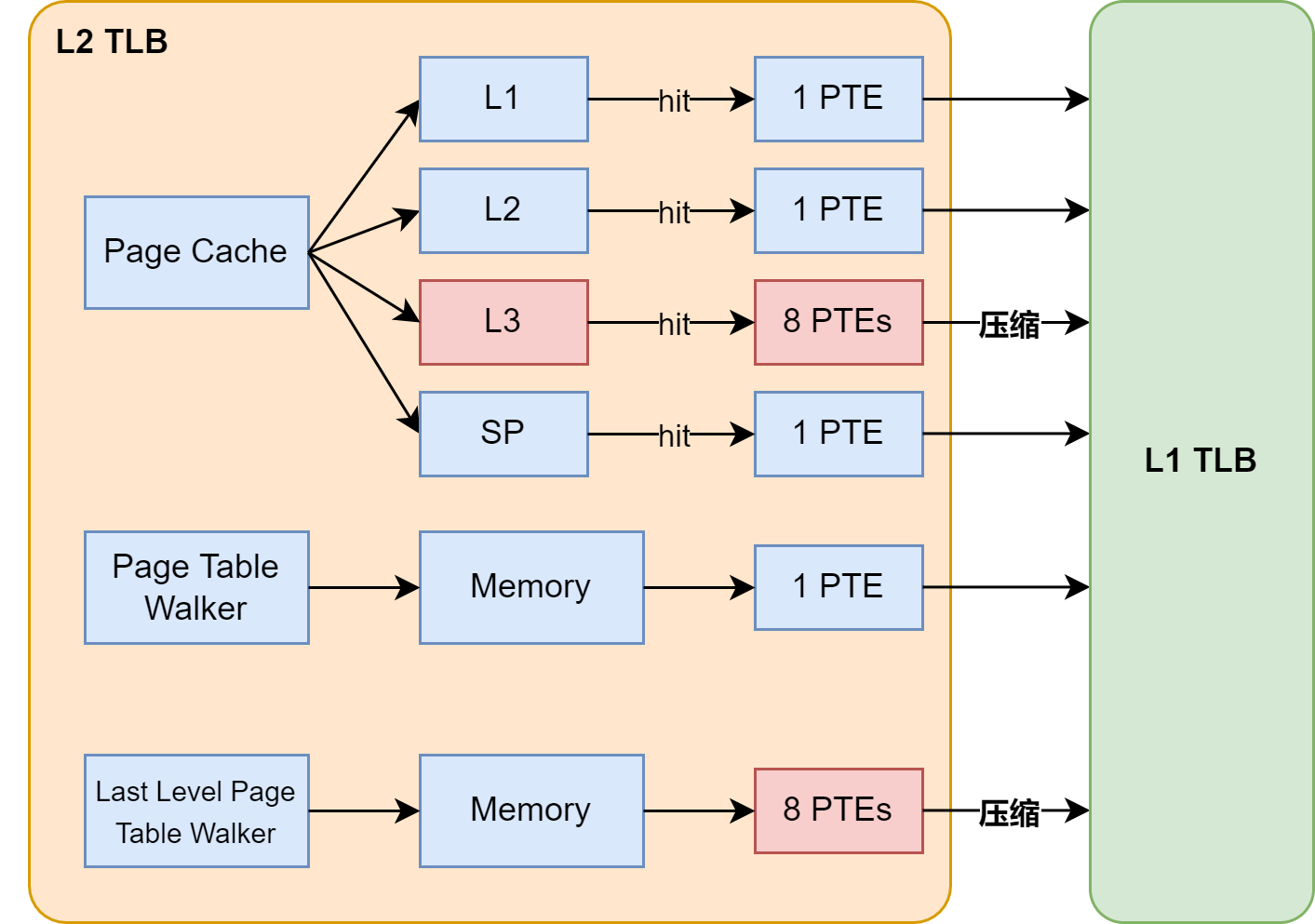

The L2 TLB accesses memory in 512-bit widths, returning 8 page table entries per access. The l3 entries of the Page Cache are composed of SRAM and can store 8 consecutive page table entries during refill, while the sp entries use register files and store only a single entry. Thus, when the Page Cache hits and returns to the L1 TLB (excluding two-stage address translation, where a first-stage hit would be forwarded to PTW for further processing), if the hit is for a 4KB page table, the 8 consecutive entries can be compressed. For large pages, no compression is performed, and the entry is directly refilled into the L1 TLB. (In practice, misses for 1GB or 2MB large pages are rare, so compression is only considered for 4KB pages. For 4KB pages, the ppn is 24 bits, and compression requires the upper 21 bits of the ppn to match across 8 consecutive entries. For 1GB or 2MB large pages, the lower 9 bits of the ppn are unused for physical address generation and are thus irrelevant in the current design.)

When a Page Cache miss occurs and the Page Table Walker or Last Level Page Table Walker accesses the page table in memory, the page table from memory is returned to the L1 TLB and refilled into the Page Cache. If a second-stage address translation is required, the page table accessed by the Hypervisor Page Table Walker is also refilled into the Page Cache. The HPTW returns the final translation result to the PTW or LLPTW, which then returns both stages of the page table to the L1 TLB. For non-two-stage translation requests, the L1 TLB can also compress up to 8 consecutive page table entries upon return. Since the Page Table Walker only returns directly to the L1 TLB when accessing a leaf node, the page tables returned by the Page Table Walker to the L1 TLB are all large pages. Given the minimal performance impact of large pages and the simplicity of the optimization implementation, as well as the reuse of the data path for sp entries in the Page Cache, the large pages returned by the Page Table Walker are not compressed.

The L2 TLB only compresses 4KB page tables. According to the Sv39 paging mechanism in the RISC-V Privileged Specification, the lower 3 bits of the physical address for a 4KB page table correspond to the lower 3 bits of the virtual page number. Thus, the 8 consecutive page table entries returned by the Page Cache or Last Level Page Table Walker can be indexed using the lower 3 bits of the virtual page number. The valid bit indicates whether the compressed page table entry is valid. Based on the lower 3 bits of the virtual page number in the page table lookup request from the L1 TLB, the corresponding page table entry is indexed, and its valid bit must be 1. For the remaining 7 consecutive entries, their validity is determined by comparing their upper physical page numbers and page table attribute bits with those of the indexed entry. If they match, the valid bit is set to 1; otherwise, it is 0. Additionally, the L2 TLB returns pteidx, indicating which of the 8 consecutive page table entries corresponds to the vpn sent by the L1 TLB. The L2 TLB compression is illustrated in 此图、此图.

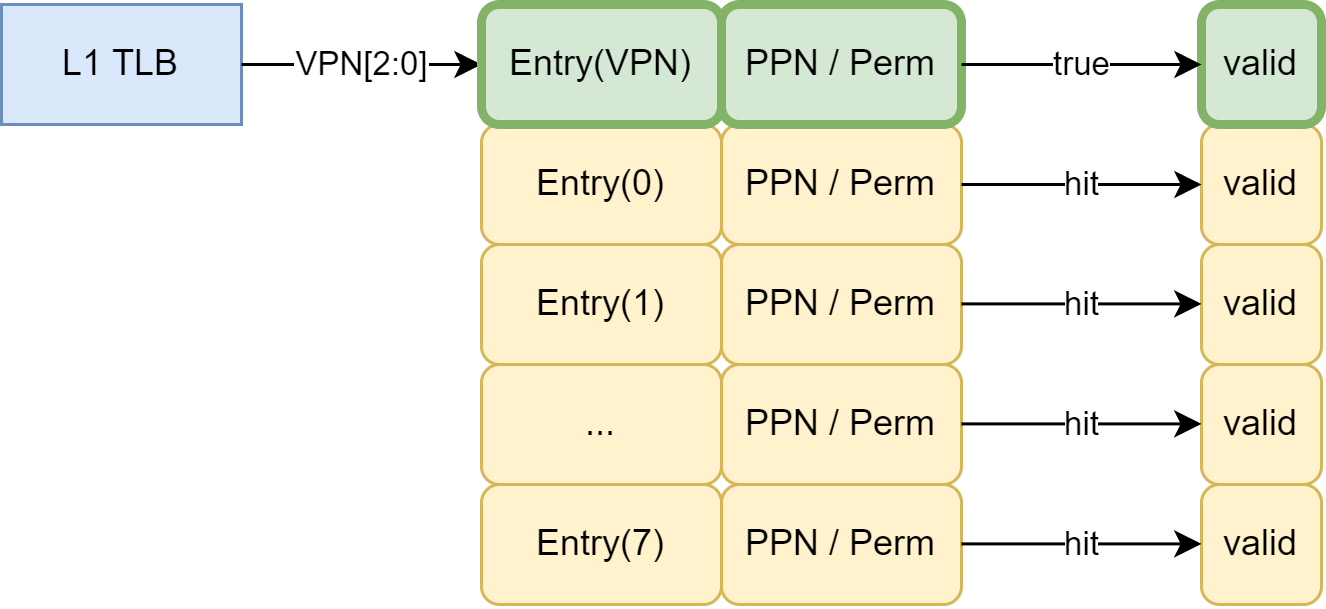

With TLB compression implemented, each entry in the L1 TLB is a compressed TLB entry, indexed by the upper bits of the virtual page number. A TLB hit requires not only matching the upper vpn bits but also the valid bit for the corresponding lower vpn bits to be 1, indicating the entry is valid in the compressed TLB. Details on TLB compression and its relation to L1 TLB are covered in the L1TLB module description.

Overall Block Diagram

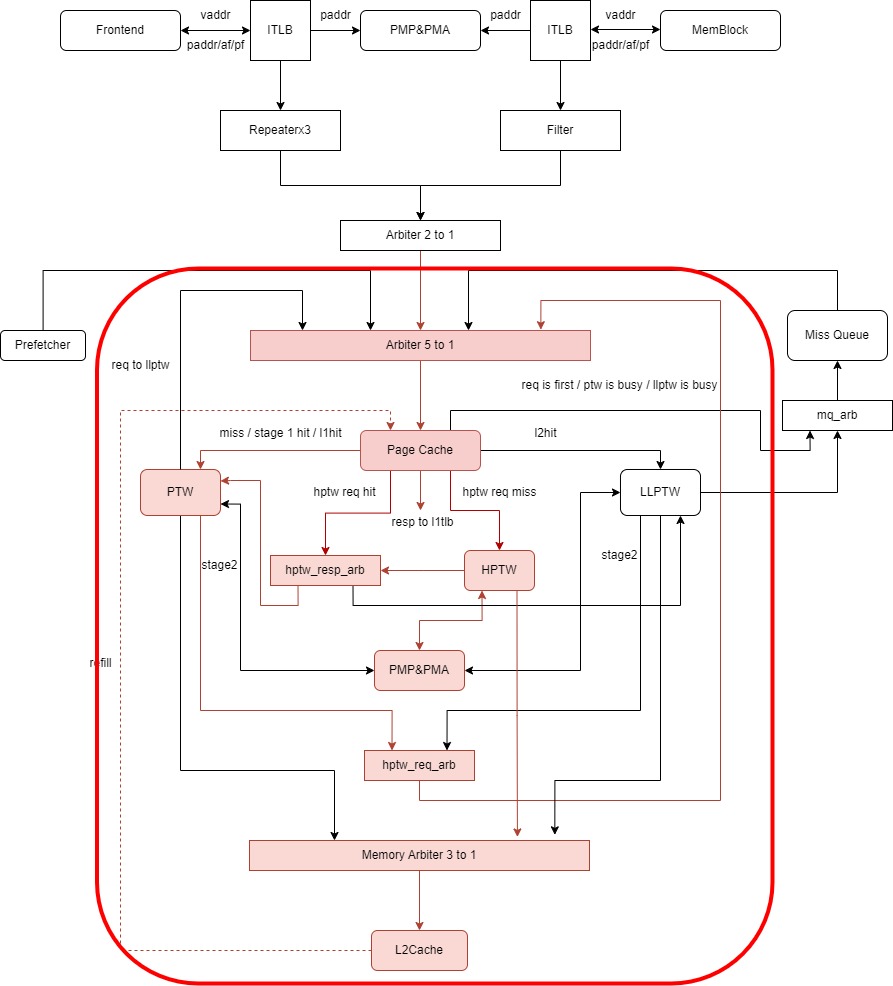

As shown in 此图, the L2 TLB is divided into six parts: Page Cache, Page Table Walker, Last Level Page Table Walker, Hypervisor Page Table Walker, Miss Queue, and Prefetcher.

Requests from L1 TLB first access the Page Cache. For non-two-stage address translation requests, if a leaf node is hit, it is directly returned to L1 TLB. Otherwise, based on the page table level hit in Page Cache and the availability of Page Table Walker and Last Level Page Table Walker, the request enters Page Table Walker, Last Level Page Table Walker, or Miss Queue (see Section 5.3.7). For two-stage address translation requests: if the request is onlyStage1, it is processed the same way as non-two-stage requests; if onlyStage2 and a leaf page table is hit, it is directly returned; if not hit, it is sent to Page Table Walker for translation; if the request is allStage, since Page Cache can only query one page table at a time, it first queries the first-stage page table. There are two scenarios: if the first-stage page table hits, it is sent to Page Table Walker for subsequent translation; if the first-stage page table does not hit a leaf node, it enters Page Table Walker, Last Level Page Table Walker, or Miss Queue based on the hit page table level and the availability of Page Table Walker and Last Level Page Table Walker. To accelerate page table access, Page Cache caches all three levels of page tables separately, allowing simultaneous queries (see Section 5.3.7). Page Cache supports ECC verification; if an ECC error is detected, the entry is refreshed, and Page Walk is restarted.

The Page Table Walker handles requests from the Page Cache to perform Hardware Page Table Walk. For non-two-stage address translation requests, it only accesses the first two levels (1GB and 2MB) of page tables, leaving 4KB page table access to the Last Level Page Table Walker. If the Page Table Walker reaches a leaf node (large page), it returns the result to the L1 TLB; otherwise, it forwards the request to the Last Level Page Table Walker for the final level of access. The Page Table Walker can only process one request at a time and cannot parallelize access to the first two levels. For two-stage address translation requests: (1) If it is an allStage request and the first-stage translation hits, PTW sends a second-stage request to the Page Cache. If it misses, the request is forwarded to the Hypervisor Page Table Walker, and the second-stage result is returned to PTW. (2) If it is an allStage request and the first-stage leaf node misses, PTW processing resembles non-virtualized requests, except that physical addresses encountered are guest physical addresses and require a second-stage translation before memory access (see the Page Table Walker module description for details). (3) For onlyStage2 requests, PTW sends a second-stage translation request externally and returns the response to L1TLB. (4) For onlyStage1 requests, PTW handles them internally the same way as non-virtualized requests.

The Miss Queue receives requests from the Page Cache and Last Level Page Table Walker, waiting for the next access to the Page Cache. The Prefetcher employs the Next-Line prefetching algorithm, generating the next prefetch request upon a miss or a hit on a prefetched entry.

The diagram involves the following arbiters, named as in the chisel code:

arb1: A 2-to-1 arbiter, shown as Arbiter 2 to 1 in the diagram, with inputs from ITLB (itlbRepeater2) and DTLB (dtlbRepeater2), and output to Arbiter 5 to 1.
arb2: A 5-to-1 arbiter (Arbiter 5 to 1 in the diagram) with inputs from Miss Queue, Page Table Walker, arb1, hptw_req_arb, and Prefetcher; output to Page Cache
hptw_req_arb: A 2-to-1 arbiter with inputs from Page Table Walker and Last Level Page Table Walker, output to Page Cache
hptw_resp_arb: A 2-to-1 arbiter with inputs from Page Cache and Hypervisor Page Table Walker, outputting to PTW or LLPTW.
outArb: A 1-to-1 arbiter with input from mergeArb and output to L1TLB's resp
mergeArb: A 3-to-1 arbiter with inputs from Page Cache, Page Table Walker, and Last Level Page Table Walker, outputting to outArb.
mq_arb: A 2-to-1 arbiter with inputs from Page Cache and Last Level Page Table Walker; output goes to the Miss Queue.
mem_arb: A 3-to-1 arbiter with inputs from Page Table Walker, Last Level Page Table Walker, and Last Level Page Table Walker; output to L2 Cache (Last Level Page Table Walker also has an internal mem_arb that arbitrates all PTW items sent by Last Level Page Table Walker to L2 Cache before passing them to this mem_arb)

The hit path of the L2 TLB module is illustrated in 此图. Requests from ITLB and DTLB first go through arbitration before being sent to the Page Cache for lookup. For requests involving non-two-stage address translation, only the second stage, or only the first stage, if the Page Cache hits, the page table entry and physical address information are directly returned to the L1 TLB. For allStage requests, the Page Cache first queries the first-stage page table. If the first stage hits, it sends the request to PTW, which then issues an hptw request. The hptw request enters the Page Cache for lookup; if it hits, it is sent to PTW; if not, it is sent to HPTW. After HPTW completes the query, the result is sent to PTW, and the page table obtained from HPTW memory access is backfilled into the Page Cache. All PTW requests from ITLB and DTLB, as well as hptw requests from PTW or LLPTW, are first queried in the Page Cache.

For miss scenarios, all modules may participate. Requests from ITLB and DTLB are first arbitrated and then sent to Page Cache for query. If Page Cache misses, the request may enter MissQueue under certain conditions (requests from PTW or LLPTW sent to Page Cache as hptw requests or prefetch requests do not enter MissQueue). Missed requests enter MissQueue in cases such as bypass requests, L1TLB sending isFirst requests to PageCache that need to enter PTW, MissQueue sending requests to PTW when PTW is busy, or sending requests to LLPTW when LLPTW is busy. Page Cache determines whether to enter Page Table Walker or Last Level Page Table Walker for query based on the page table level hit (hptw requests are sent to HPTW). Page Table Walker can only handle one request at a time and can access the first two levels of page tables in memory; Last Level Page Table Walker is responsible for accessing the last-level 4KB page table. Hypervisor Page Table Walker can only handle one request at a time.

The Page Table Walker, Last Level Page Table Walker, and Hypervisor Page Table Walker can all send requests to memory to access page table contents. Before accessing memory, the physical address is checked by the PMP and PMA modules. If the check fails, no memory request is sent. Requests from these walkers are arbitrated and then sent to the L2 Cache via the TileLink bus.

Both Page Table Walker and Last Level Page Table Walker may return PTW responses to L1 TLB. Page Table Walker may generate responses in the following scenarios:

For non-two-stage translation requests and only first-stage translation requests, accessing a leaf node (1GB or 2MB large page) directly returns to L1 TLB
For requests involving only the second-stage translation, after receiving the second-stage translation result
For requests involving two-stage translation, both the first-stage leaf page table and the second-stage leaf page table are obtained.
Second-stage translation results in a Page fault or Access fault
PMP or PMA checks result in a Page fault or Access fault, which also needs to be returned to L1 TLB

The Last Level Page Table Walker will always return a response to the L1 TLB, including the following possibilities:

Non-two-stage translation requests and single-stage translation requests accessing leaf nodes (4KB pages)
For requests involving two-stage translation, both the first-stage leaf page table and the second-stage leaf page table are obtained.
PMP or PMA checks result in an Access fault

Interface timing

Interface Timing Between L2 TLB and Repeater

The timing interface between the L2 TLB and the Repeater is shown in 此图. The L2 TLB and Repeater handshake via valid-ready signals, with the Repeater sending PTW requests and the corresponding virtual addresses from the L1 TLB to the L2 TLB. The L2 TLB returns the physical address and corresponding page table to the Repeater after querying the result.

Interface timing between L2 TLB and L2 Cache

The timing interface between the L2 TLB and L2 Cache adheres to the TileLink bus protocol.
