Secondary Module L1 TLB

Design specifications

Supports receiving address translation requests from the Frontend and MemBlock.
Supports the PLRU replacement algorithm.
Supports returning physical addresses to the Frontend and MemBlock.
Both the ITLB and DTLB employ non-blocking access.
Both ITLB and DTLB entries are implemented using register files
Both ITLB and DTLB entries are fully associative structures
ITLB and DTLB adopt the current privilege level of the processor and the effective privilege level for memory access execution
Supports determining whether virtual memory is enabled and whether two-stage translation is enabled within the L1 TLB.
Support sending PTW requests to L2 TLB
The DTLB supports copying the returned physical address.
Support for exception handling
Supports TLB compression
Support TLB Hint mechanism
Stores four types of TLB entries.
TLB refill merges the two stages of page tables.
The hit logic for TLB entries.
Supports reissuing PTW to obtain gpaddr after a guest page fault.

Function

Receives address translation requests from the Frontend and MemBlock.

Before performing memory read/write operations within the core, including frontend instruction fetching and backend memory access, address translation must be performed by the L1 TLB. Due to physical distance and to avoid mutual contamination, it is divided into the ITLB (Instruction TLB) for frontend instruction fetching and the DTLB (Data TLB) for backend memory access. The ITLB operates in a fully associative mode, with 48 fully associative entries storing all page sizes. The ITLB receives address translation requests from the Frontend, where itlb_requestors(0) to itlb_requestors(2) come from the icache, with itlb_requestors(2) being the prefetch request from the icache; itlb_requestors(3) comes from the ifu, representing the address translation request for MMIO instructions.

The configuration of ITLB entries and request sources are detailed in 此表、此表.

ITLB Entry Configuration
Item name	item count	Organization structure	Replacement Algorithm	stored content
Page	48	Fully associative	PLRU	All size pages

ITLB Request Sources
Serial number	Source
requestors(0)	Icache, mainPipe
requestors(1)	Icache, mainPipe
requestors(2)	Icache, fdipPrefetch.
requestors(3)	IFU

Xiangshan's memory access channels consist of 2 Load pipelines, 2 Store pipelines, an SMS prefetcher, and an L1 Load stream & stride prefetcher. To handle the numerous requests, the two Load pipelines and the L1 Load stream & stride prefetcher use the Load DTLB, the two Store pipelines use the Store DTLB, and prefetch requests use the Prefetch DTLB—totaling 3 DTLBs, all employing the PLRU replacement algorithm (see Section 5.1.1.2).

The DTLB operates in a fully associative mode, with 48 fully associative entries storing all page sizes. The DTLB receives address translation requests from MemBlock, where dtlb_ld handles requests from loadUnits and the L1 Load stream & stride prefetcher, responsible for address translation of Load instructions; dtlb_st processes requests from StoreUnits, handling address translation for Store instructions. Notably, for AMO instructions, the dtlb_ld_requestor of loadUnit(0) is used to send requests to dtlb_ld. The SMSPrefetcher sends prefetch requests to a separate DTLB.

The configuration and request sources of DTLB entries are as shown in 此表、此表.

DTLB Entry Configuration
Item name	item count	Organization structure	Replacement Algorithm	stored content
Page	48	Fully associative	PLRU	All size pages

DTLB Request Sources
module	Serial number	Source
DTLB_LD
	ld_requestors(0)	loadUnit(0), AtomicsUnit
	ld_requestors(1)	loadUnit(1)
	ld_requestors(2)	loadUnit(2)
	ld_requestors(3)	L1 Load stream & stride Prefetch.
DTLB_ST
	st_requestors(0)	StoreUnit(0)
	st_requestors(1)	StoreUnit(1)
DTLB_PF
	pf_requestors(0)	SMSPrefetch
	pf_requestors(1)	L2 Prefetch

Uses the PLRU replacement algorithm

L1 TLB employs a configurable replacement policy, defaulting to the PLRU algorithm. In the Nanhu architecture, both ITLB and DTLB include NormalPage and SuperPage, complicating the refill strategy. ITLB's NormalPage handles 4KB page translations, while SuperPage handles 2MB and 1GB page translations, requiring entries to be filled into NormalPage or SuperPage based on the refilled page size (4KB, 2MB, or 1GB). DTLB's NormalPage handles 4KB page translations, while SuperPage handles all page sizes. NormalPage uses direct mapping with many entries but low utilization. SuperPage is fully associative with high utilization but fewer entries due to timing constraints, resulting in a high miss rate.

Note that the Kunminghu architecture optimizes the above issues by unifying the ITLB and DTLB as 48-entry fully associative structures under timing constraints, allowing any page size to be refilled. Both ITLB and DTLB use the PLRU replacement strategy.

The refill policies for ITLB and DTLB are shown in 此表.

ITLB and DTLB refill policy
module	Item name	Policy
ITLB
	Page	48-entry fully associative, capable of backfilling pages of any size
DTLB
	Page	48-entry fully associative, capable of backfilling pages of any size

Returns the physical address to the Frontend and MemBlock.

After obtaining the physical address from the virtual address in the L1 TLB, the corresponding physical address of the request, along with information such as whether a miss occurred, guest page fault, page fault, or access fault, is returned to the Frontend and MemBlock. For each request in the Frontend or MemBlock, a response is sent by the ITLB or DTLB, indicated by tlb_requestor(i)_resp_valid to signify the response is valid.

In the Nanhu architecture, although SuperPage and NormalPage are physically implemented using register files, SuperPage is a 16-entry fully associative structure, while NormalPage is a direct-mapped structure. After reading data from the direct-mapped NormalPage, a tag comparison is required. Despite the SuperPage having 16 fully associative entries, only one entry can be hit at a time, which is marked by hitVec to select the data read from the SuperPage. The time taken to read data + tag comparison in NormalPage is significantly longer than reading data + selecting data in SuperPage. Therefore, from a timing perspective, the dtlb returns a fast_miss signal to the MemBlock, indicating a SuperPage miss, and a miss signal indicating both SuperPage and NormalPage misses.

Meanwhile, in the Nanhu architecture, due to tight timing constraints for PMP & PMA checks in the DTLB, the PMP is divided into dynamic and static checks (see Section 5.4). When the L2 TLB's page table entry is refilled into the DTLB, the refilled entry is simultaneously sent to the PMP and PMA for permission checks, with the results stored in the DTLB. The DTLB must additionally return a signal indicating the validity of the static check and the check results to the MemBlock.

It is important to note that the Kunminghu architecture optimizes TLB query configurations and corresponding timing. Currently, fast_miss has been removed, and no additional static PMP & PMA checks are required. However, these may be reinstated in the future due to timing or other reasons. For documentation completeness and compatibility, the previous two sections are retained. The Kunminghu architecture has eliminated fast_miss and static PMP & PMA checks—please take note again.

Blocking and non-blocking accesses

In the Nanhu architecture, the frontend's instruction fetch requires blocking access to the ITLB, while the backend's memory access requires non-blocking access to the DTLB. In reality, the TLB itself is non-blocking and does not store request information. The reason for blocking or non-blocking access lies in the requirements of the request source. When the frontend encounters a TLB miss during instruction fetch, it must wait for the TLB to retrieve the result before sending the instruction to the processor backend for processing, resulting in a blocking effect. In contrast, memory operations can be scheduled out-of-order. If one request misses, another load/store instruction can be scheduled for execution, thus exhibiting a non-blocking effect.

The above functionality in the Nanhu architecture is implemented via TLB, where control logic ensures that after an ITLB miss, it continuously waits for the PTW to retrieve the page table entry. In Kunminghu, this functionality is guaranteed by ICache, where after an ITLB miss is reported to ICache, ICache continuously resends the same request until a hit, ensuring non-blocking access.

However, it should be noted that in the Kunminghu architecture, both the ITLB and DTLB are non-blocking. Whether the external effect is blocking or non-blocking is controlled by the fetch unit or memory access unit.

Storage structure of L1 TLB entries.

Xiangshan's TLB allows configuration of organizational structures, including associative modes, entry counts, and replacement policies. The default configuration is: both ITLB and DTLB are 48-entry fully associative structures, implemented by register files (see Section 5.1.2.3). If simultaneous read and write operations to the same address occur in the same cycle, results can be obtained directly via bypass.

Referenced ITLB or DTLB configuration: Both employ a fully associative structure with 8/16/32/48 entries. Currently, parameterized modification of TLB structures (fully associative/set-associative/direct-mapped) is not supported and requires manual code changes.

Supports determining whether virtual memory is enabled and whether two-stage translation is enabled within the L1 TLB.

Xiangshan supports the Sv39 page table specified in the RISC-V manual, with a virtual address length of 39 bits. Xiangshan's physical address is 36 bits, which can be modified parametrically.

Determining whether virtual memory is enabled depends on the privilege level and the MODE field of the SATP register, among other factors. This decision is made internally by the TLB and is transparent to external modules. For details on privilege levels, refer to Section 5.1.2.7. Regarding the SATP MODE field, the Kunminghu architecture of Xiangshan only supports MODE=8, corresponding to the Sv39 paging mechanism; otherwise, an illegal instruction fault is raised. From the perspective of external modules (Frontend, LoadUnit, StoreUnit, AtomicsUnit, etc.), all addresses have undergone TLB translation.

When the H extension is added, enabling address translation also requires determining whether two-stage address translation is active. Two-stage address translation is triggered under two conditions: first, when executing a virtualization memory access instruction, and second, when virtualization mode is enabled and the MODE field of VSATP or HGATP is non-zero. The translation modes in this scenario are as follows. The translation mode is used to search for the corresponding type of page table in the TLB and to send PTW requests to the L2TLB.

Two-Stage Translation Mode
VSATP Mode	HGATP Mode	Translation Mode
Non-zero	Non-zero	allStage, both translation stages present
Non-zero	0	onlyStage1, only first-stage translation
0	Non-zero	onlyStage2, indicating only second-stage translation.

Privilege level of L1 TLB.

According to the RISC-V manual requirements, the privilege level for frontend instruction fetch (ITLB) is the current processor privilege level, while the privilege level for backend memory access (DTLB) is the effective memory access execution privilege level. Both the current processor privilege level and the effective memory access execution privilege level are determined in the CSR module and passed to the ITLB and DTLB. The current processor privilege level is stored in the CSR module; the effective memory access execution privilege level is determined by the MPRV, MPV, and MPP bits of the mstatus register, along with the SPVP bit of the hstatus register. If executing a virtualized memory access instruction, the effective memory access execution privilege level is the privilege level stored in the SPVP bit of hstatus. If the executed instruction is not a virtualized memory access instruction and the MPRV bit is 0, the effective memory access execution privilege level is the same as the current processor privilege level, and the effective virtualization mode for memory access also matches the current virtualization mode. If the MPRV bit is 1, the effective memory access execution privilege level is the privilege level stored in the MPP field of the mstatus register, and the effective virtualization mode is the virtualization mode stored in the MPV bit of the hstatus register. The privilege levels for ITLB and DTLB are as shown in the table.

Privilege Levels of ITLB and DTLB
module	Privilege Level
ITLB	Current processor privilege level
DTLB	When executing non-virtualized memory access instructions, if mstatus.MPRV=0, the current processor privilege level and virtualization mode are used; if mstatus.MPRV=1, the privilege level saved in mtatus.MPP and the virtualization mode saved in hstatus.MPV are used.

Send PTW request

When an L1 TLB miss occurs, a Page Table Walk request must be sent to the L2 TLB. Due to the significant physical distance between L1 TLB and L2 TLB, intermediate pipeline stages, known as Repeaters, are required. Additionally, the repeater must filter out duplicate requests to prevent redundant entries in the L1 TLB (see Section 5.2). Hence, the first-level Repeater for ITLB or DTLB is also referred to as a Filter. The L1 TLB sends PTW requests and receives PTW responses via the Repeater to/from the L2 TLB (see Section 5.3).

DTLB copies the queried physical address.

In physical implementation, the dcache of Memblock is located far from the lsu. Generating hitVec in the load_s1 stage of LoadUnit and then sending it separately to dcache and lsu would cause severe timing issues. Therefore, it is necessary to generate two hitVec in parallel near dcache and lsu, sending them to dcache and lsu respectively. To address the timing issues of Memblock, the DTLB needs to duplicate the queried physical address into two copies, sending them to dcache and lsu separately, with both physical addresses being identical.

Exception Handling Mechanism

Exceptions that ITLB may generate include inst guest page fault, inst page fault, and inst access fault, all of which are delivered to the requesting ICache or IFU for handling. DTLB may generate exceptions such as load guest page fault, load page fault, load access fault, store guest page fault, store page fault, and store access fault, all delivered to the requesting LoadUnits, StoreUnits, or AtomicsUnit for handling. L1TLB does not store gpaddr, so when a guest page fault occurs, PTW must be reinitiated. Refer to Section 6 of this document: Exception Handling Mechanism.

Additional clarification is needed regarding exceptions related to virtual-to-physical address translation. Here, we categorize exceptions as follows:

Page table-related exceptions
In non-virtualized scenarios or during VS-Stage virtualization, if the page table has reserved bits not equal to 0, is misaligned, lacks write permission (w), etc. (see the manual for details), a page fault must be reported.
During the virtualization stage (G-Stage), if reserved bits in the page table are non-zero, misaligned, or write operations lack 'w' permission (refer to the manual for details), a guest page fault must be reported.
Exceptions related to virtual or physical addresses
1. Exceptions related to virtual or physical addresses during address translation. These checks are performed during the PTW process of the L2 TLB.
2. In non-virtualized scenarios or during all-Stage virtualization, the G-stage gvpn needs to be checked. If hgatp's mode is 8 (representing Sv39x4), all bits above (41 - 12 = 29) of gvpn must be 0; if hgatp's mode is 9 (representing Sv48x4), all bits above (50 - 12 = 38) of gvpn must be 0. Otherwise, a guest page fault will be reported.
3. When translating an address to obtain a page table, the upper bits (above 36, since 48-12=36) of the PPN portion of the page table must all be 0. Otherwise, an access fault will be raised.
4. Exceptions related to virtual or physical addresses in the original address are summarized as follows. In theory, these should all be checked in the L1 TLB. However, since the ITLB's redirect results come entirely from the Backend, the corresponding exceptions in the ITLB will be recorded when the Backend sends a redirect to the Frontend and will not be rechecked in the ITLB. Please refer to the Backend's explanation for details.
5. Sv39 Mode: Includes cases where virtual memory is enabled without virtualization (sATP's mode is 8) or virtual memory is enabled with virtualization (vsatp's mode is 8). In this mode, bits [63:39] of the vaddr must match the sign of bit 38; otherwise, instruction page fault, load page fault, or store page fault will be reported based on the fetch/load/store request.
6. Sv48 mode: Includes scenarios where virtual memory is enabled without virtualization (satp mode is 9) or where virtual memory is enabled with virtualization (vsatp mode is 9). In these cases, bits [63:48] of the vaddr must match the sign of bit 47 of the vaddr. Otherwise, depending on whether it's an instruction fetch, load, or store request, an instruction page fault, load page fault, or store page fault will be raised, respectively.
7. Sv39x4 Mode: Virtual memory is enabled, virtualization is enabled, vsatp's mode is 0, and hgatp's mode is 8. (Note: When vsatp's mode is 8/9 and hgatp's mode is 8, the second-stage address translation is also in Sv39x4 mode, which may generate corresponding exceptions. However, these exceptions fall under "exceptions related to virtual or physical addresses during address translation" and are handled during the page table walk in the L2 TLB, not within the scope of the L1 TLB. The L1 TLB only handles "exceptions related to the original virtual or physical addresses.") In this mode, bits [63:41] of the vaddr must all be 0; otherwise, instruction guest page fault, load guest page fault, or store guest page fault will be reported based on the fetch/load/store request.
8. Sv48x4 mode: Virtual memory is enabled, virtualization is enabled, vsatp's mode is 0, and hgatp's mode is 9. (Note: When vsatp's mode is 8/9 and hgatp's mode is 9, the second-stage address translation is also in Sv48x4 mode, which may generate corresponding exceptions. However, these belong to "exceptions related to virtual or physical addresses during address translation" and are handled during the page table walk of L2 TLB, not within the scope of L1 TLB. L1 TLB only additionally handles "exceptions related to virtual or physical addresses in the original address.") In this case, bits [63:50] of vaddr must all be 0; otherwise, instruction guest page fault, load guest page fault, or store guest page fault must be reported based on the fetch/load/store request.
9. Bare mode: Virtual memory is disabled, so paddr = vaddr. Since the physical address of the Xiangshan processor is currently limited to 48 bits, vaddr must have bits [63:48] all set to 0; otherwise, instruction access fault, load access fault, or store access fault will be reported based on fetch/load/store requests.

To support the exception handling for the aforementioned "original address," the L1 TLB needs to add input signals fullva (64 bits) and checkfullva (1 bit). Additionally, vaNeedExt must be added to the output. Specifically:

checkfullva is not a control signal for fullva. In other words, the content of fullva is not only valid when checkfullva is asserted.
When is checkfullva valid (needs to be asserted)
1. For ITLB, checkfullva is always false, so when Chisel generates Verilog, checkfullva may be optimized out and not reflected in the input.
2. For the DTLB, all load/store/amo/vector instructions must undergo a checkfullva check when first sent from the Backend to the MemBlock. It is further clarified that the "exception related to virtual or physical addresses in the original address" is a check solely for vaddr (for load/store instructions, the vaddr is typically calculated as the value of a register plus an immediate value to form a 64-bit value). Therefore, it does not require waiting for a TLB hit, and when such an exception occurs, the TLB will not return a miss, indicating the exception is valid. Thus, "when first sent from the Backend to the MemBlock," this exception can always be detected and reported. For misaligned memory accesses, they will not enter the misalign buffer; for load instructions, they will not enter the load replay queue; for store instructions, they will not be resent by the reservation station. Therefore, if the exception is not detected "when first sent from the Backend to the MemBlock," it will not appear during a load replay, and no checkfullva check is needed. For prefetch instructions, checkfullva is not raised.
When fullva is valid (when it is used)
1. Except for one specific case, fullva is only valid when checkfullva is high, representing the full vaddr to be checked. It should be noted that for a load/store instruction, the original vaddr calculated is 64 bits (the value read from the register is 64 bits), but querying the TLB only uses the lower 48/50 bits (Sv48/Sv48x4), while querying exceptions requires the full 64 bits.
2. Special case: A misaligned instruction triggers a gpf, requiring retrieval of the gpaddr. The current logic for handling misaligned exceptions on the memory access side is as follows:
3. For example, the original vaddr is 0x81000ffb, and an 8-byte data load is required.
4. The misalign buffer splits this instruction into two loads with vaddr 0x81000ff8 (load 1) and 0x81001000 (load 2), which do not belong to the same virtual page.
5. For load 1, the vaddr passed to the TLB is 0x81000ff8, with fullva always being the original vaddr 0x81000ffb; for load 2, the vaddr passed to the TLB is 0x81001000, with fullva always being the original vaddr 0x81000ffb.
6. For load 1, if an exception occurs, the offset written to the tval register is defined as the offset of the original addr (i.e., 0xffb). For load 2, if an exception occurs, the offset written to the tval register is defined as the starting value of the next page (0x000). In virtualization scenarios with onlyStage2, gpaddr equals the vaddr where the exception occurred. Thus, for misaligned requests spanning pages where the exception occurs on the subsequent page, gpaddr is generated using only vaddr (with an offset of 0x000), not fullva. For misaligned requests within a single page or spanning pages where the exception occurs on the original address, gpaddr is generated using the offset from fullva (0xffb). Here, fullva is always valid, regardless of whether checkfullva is asserted.
When vaNeedExt is valid (under what circumstances it is used)
In the memory access queue (load queue/store queue), to save area, the original 64-bit address is truncated to 50 bits for storage. However, when writing to the tval register, a 64-bit value must be written. As mentioned earlier, for exceptions related to "virtual or physical addresses in the original address," the full 64-bit address must be preserved. For other page table-related exceptions, the high bits of the address itself meet the requirements. For example: * fullva = 0xffff,ffff,8000,0000; vaddr = 0xffff,8000,0000. Mode is non-virtualized Sv39. Here, the original address does not trigger an exception. Assuming this is a load request, the first TLB access results in a miss, so the load enters the load replay queue for retransmission, and the address is truncated to 50 bits. Upon retransmission, it is discovered that the V bit of the page table is 0, causing a page fault. The vaddr must be written to the tval register. Since the address was truncated in the load queue replay, sign extension is required (e.g., for Sv39, extending bits above 39 to the value of bit 38), and vaNeedExt is asserted. * fullva = 0x0000,ffff,8000,0000; vaddr = 0xffff,8000,0000. Mode is non-virtualized Sv39. Here, it can be observed that the original address already triggers an exception, and we will directly write this address into the corresponding exception buffer (the exception buffer stores the complete 64-bit value). At this point, the original value of 0x0000,ffff,8000,0000 must be written directly into *tval without sign extension, and vaNeedExt is low.

Supports the pointer masking extension

Currently, the Xiangshan processor supports the pointer masking extension.

The essence of the pointer masking extension is to transform the fullva of memory access from the original value of "register file value + imm immediate" to the "effective vaddr," where higher bits may be ignored. When pmm is 2, the upper 7 bits are ignored; when pmm is 3, the upper 16 bits are ignored. A pmm of 0 means no higher bits are ignored, and pmm of 1 is reserved.

The value of pmm may come from the PMM bits ([33:32]) of mseccfg/menvcfg/henvcfg/senvcfg or from the HUPMM bits ([49:48]) of the hstatus register. The specific selection is as follows:

For frontend instruction fetch requests or an hlvx instruction specified in the manual, pointer masking (pmm = 0) will not be used.
When the current effective memory access privilege level (dmode) is M-mode, select the PMM bits ([33:32]) of mseccfg
In a non-virtualized scenario, where the current effective memory access privilege level is S-mode (HS), select the PMM bits ([33:32]) of menvcfg.
In a virtualized scenario, when the current effective memory access privilege level is S-mode (VS), select the PMM bits ([33:32]) of henvcfg.
For virtualization instructions where the current processor privilege level (imode) is U-mode, the HUPMM bits ([49:48]) of hstatus are selected.
For other U-mode scenarios, select the PMM bits ([33:32]) of senvcfg.

Since pointer masking only applies to memory accesses and not to frontend instruction fetching, the ITLB does not have the concept of "effective vaddr" and does not incorporate these signals from CSR in its ports.

Since these high-order addresses are only checked and used in the aforementioned "original address, virtual address, or physical address-related exceptions," for cases where high-order bits are masked, we simply ensure they do not trigger exceptions. Specifically:

For non-virtualized scenarios with virtual memory enabled, or virtualized scenarios that are not onlyStage2 (vsatp mode is not 0); depending on whether pmm is 2 or 3, sign-extend the upper 7 or 16 bits of the address, respectively.
For the onlyStage2 case in virtualized scenarios or when virtual memory is not enabled, zero-extend the upper 7 or 16 bits of the address based on whether the pmm value is 2 or 3, respectively.

Supports TLB compression

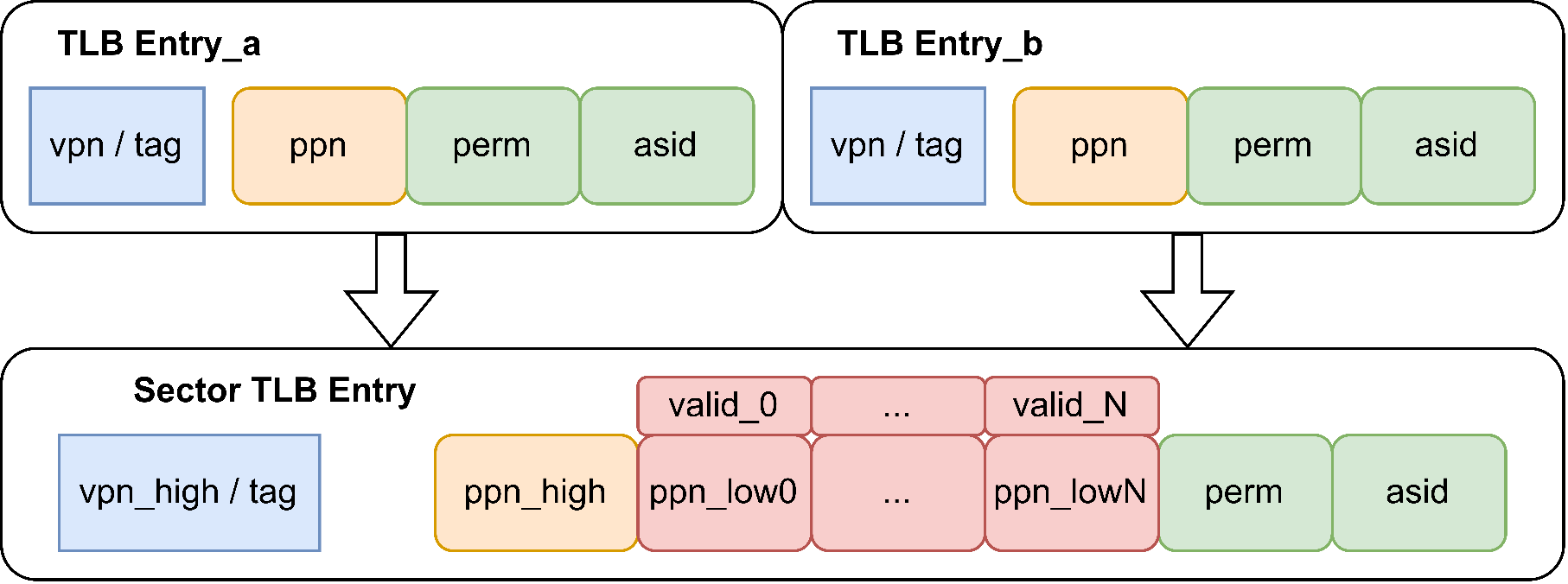

The Kunminghu architecture supports TLB compression, where each compressed TLB entry stores eight consecutive page table entries, as shown in the figure. The theoretical basis for TLB compression is that operating systems, due to mechanisms like buddy allocation, tend to allocate contiguous physical pages to contiguous virtual pages. Although page allocation becomes less ordered over time, this page correlation is common. Thus, multiple contiguous page table entries can be merged into a single TLB entry, effectively increasing TLB capacity.

In other words, for page table entries with the same upper bits of the virtual page number, if the upper bits of the physical page number and the page table attributes are also the same, these entries can be compressed into a single entry for storage, thereby increasing the effective capacity of the TLB. The compressed TLB entry shares the upper bits of the physical page number and the page table attribute bits, while each page table individually retains the lower bits of the physical page number. The valid field indicates whether the page table is valid within the compressed TLB entry, as shown in Table 5.1.8.

Table 5.1.8 shows the comparison before and after compression. The tag before compression is the vpn, while the compressed tag is the upper 24 bits of the vpn, with the lower 3 bits not needing to be stored. In fact, for the i-th entry of 8 consecutive page table entries, i corresponds to the lower 3 bits of the tag. The upper 21 bits of ppn are the same, and ppn_low stores the lower 3 bits of ppn for each of the 8 entries. Valididx indicates the validity of these 8 entries, where only valididx(i) being 1 means the entry is valid. pteidx(i) represents the i-th entry corresponding to the original request, i.e., the value of the lower 3 bits of the original request's vpn.

Here is an illustrative example. For instance, if a vpn is 0x0000154 with the lower three bits being 100 (i.e., 4), after being filled back into the L1 TLB, the 8 page table entries from vpn 0x0000150 to 0x0000157 will all be filled back and compressed into a single entry. For example, if the upper 21 bits of the ppn for vpn 0x0000154 are PPN0 and the page table attribute bits are PERM0, and if the upper 21 bits of the ppn and the page table attributes for the i-th entry among these 8 page tables are also PPN0 and PERM0, then valididx(i) is 1, with the lower 3 bits of the i-th page table saved via ppn_low(i). Additionally, pteidx(i) represents the i-th entry corresponding to the original request. Here, the lower three bits of the original request's vpn are 4, so pteidx(4) is 1, while all other pteidx(i) are 0.

Additionally, the TLB does not compress query results for large pages (1GB, 2MB). For large pages, every bit of valididx(i) is set to 1 upon return. According to page table query rules, large pages do not actually use ppn_low, so the value of ppn_low can be arbitrary.

Contents stored per TLB entry before and after compression
compressed or not	tag	asid	level	ppn	perm	valididx	pteidx	ppn_low
No	27 bits	16-bit.	2 bits	24-bit	Page table attributes	Not saved	Not saved	Not saved
Yes	24-bit	16-bit.	2 bits	21 bits	Page table attributes	8 bits	8 bits	8×3 bits.

After implementing TLB compression, the hit condition of L1 TLB changes from TAG hit to TAG hit (high bits of vpn match), while also requiring the valididx(i) indexed by the lower 3 bits of vpn to be valid. PPN is obtained by concatenating ppn (upper 21 bits) with ppn_low(i).

Note that after adding the H extension, L1TLB entries are divided into four types. The TLB compression mechanism is not enabled for virtualized TLB entries (though TLB compression is still used in the L2TLB). These four types will be described in detail later.

Stores four types of TLB entries.

The L1 TLB entries have been modified with the addition of the H extension, as shown in 此图.

Compared to the original design, g_perm, vmid, and s2xlate have been added. Here, g_perm stores the permission bits of the second-stage page table, vmid stores the VMID of the second-stage page table, and s2xlate distinguishes the types of TLB entries. The content stored in TLB entries varies depending on s2xlate.

Types of TLB entries
type	s2xlate	tag	ppn	perm	g_perm	level
noS2xlate	b00	Virtual page number in non-virtualized mode	Physical page number in non-virtualized mode	Page table entry permissions in non-virtualized mode	Not used	Page table entry level in non-virtualized mode
allStage	b11	Virtual page number of the first-stage page table	Physical page number of the second-stage page table	First-stage page table permissions	Second-stage page table perm	The highest level in two-stage translation
onlyStage1	b01	Virtual page number of the first-stage page table	Physical page number of the first-stage page table	First-stage page table permissions	Not used	Level of the first-stage page table
onlyStage2.	b10	Virtual page number of the second-stage page table	Physical page number of the second-stage page table	Not used	Second-stage page table perm	Level of the second-stage page table

TLB compression technology is enabled in noS2xlate and onlyStage1 but not in other cases. In allStage and onlyS2xlate scenarios, the L1TLB hit mechanism uses pteidx to calculate the tag and ppn of valid ptes, and these two cases also differ during refill. Furthermore, asid is valid in noS2xlate, allStage, and onlyStage1, while vmid is valid in allStage and onlyS2xlate.

TLB refill merges the two stages of page tables.

With the H extension added to the MMU, the PTW response structure is divided into three parts. The first part, s1, is the original PtwSectorResp, storing the first-stage translation page table. The second part, s2, is HptwResp, storing the second-stage translation page table. The third part is s2xlate, indicating the type of this resp, which can be noS2xlate, allStage, onlyStage1, or onlyStage2, as shown in 此图. Here, PtwSectorEntry is a PtwEntry with TLB compression, with the main difference being the length of the tag and ppn fields.

For noS2xlate and onlyStage1 cases, only the s1 result needs to be filled into the TLB entry, with a method similar to the original design, filling the corresponding fields of the returned s1 into the entry's corresponding fields. Note that for noS2xlate, the vmid field is invalid.

For the onlyS2xlate case, we populate the TLB entry with the s2 result. Due to the TLB compression structure, special handling is required. First, the asid and perm fields of this entry are unused, so we do not care about the values filled here. The vmid is populated with the s1 vmid (since the PTW module always fills this field regardless of the scenario, it can be directly used for writing). The s2 tag is written into the TLB entry's tag, and the pteidx is determined based on the lower sectortlbwidth bits of the s2 tag. If s2 is a large page, all valididx fields in the TLB entry are marked valid; otherwise, only the valididx corresponding to the pteidx is valid. The ppn field is filled by reusing the allStage logic, which will be explained in the allStage case.

For allStage, the two-stage page tables must be merged. First, populate the tag, asid, and vmid based on s1. Since there is only one level, the level field should be filled with the maximum value between s1 and s2. This accounts for scenarios where the first stage uses large pages and the second stage uses small pages, which might cause a query to hit a large page while exceeding the range of the second-stage page table. The tag for such requests must also be merged—for example, combining the first-level page number from the first tag with the second-level page number from the second tag (the third-level page number can be padded with zeros) to form the new page table tag. Additionally, populate the perm fields from both s1 and s2, along with s2xlate. For ppn, since guest physical addresses are not stored, if the first stage uses small pages and the second stage uses large pages, directly storing s2's ppn would result in incorrect physical address calculations during queries. Thus, s2's tag and ppn must first be concatenated based on s2's level, with s2ppn as the high-order ppn and s2ppn_tmp constructed for the low-order calculation. The high-order bits are stored in the TLB entry's ppn field, and the low-order bits in the ppn_low field.

The hit logic for TLB entries.

There are three types of hits used in the L1TLB: TLB query hits, TLB fill hits, and PTW request response hits.

For TLB hit queries, new parameters such as vmid, hasS2xlate, onlyS2, and onlyS1 have been added. The Asid hit is always true during the second-stage translation. The H extension adds pteidx hit, which is enabled for small pages in allStage and onlyS2 scenarios to mask the TLB compression mechanism.

For TLB fill hits (wbhit), the input is PtwRespS2. The current VPN for comparison must be determined. If only the second-stage translation is involved, the upper bits of the s2 tag are used; otherwise, the tag of s1vpn is used, with zeros padded in the lower sectortlbwidth bits. The VPN is then compared with the tag of the TLB entry. The H extension modifies the wb_valid judgment and adds pteidx_hit and s2xlate_hit. For PTW responses involving only second-stage translation, wb_valididx is determined by the s2 tag; otherwise, it is directly connected to s1's valididx. The s2xlate hit compares the s2xlate field of the TLB entry with that of the PTW response to filter TLB entry types. The pteidx_hit is used to invalidate TLB compression: for second-stage-only translations, the lower bits of the s2 tag are compared with the pteidx of the TLB entry; for other two-stage translation cases, the pteidx of the TLB entry is compared with s1's pteidx.

For PTW request resp hits, they are primarily used to determine whether the PTW req sent by the TLB corresponds to the resp or whether the PTW resp matches the TLB's request during a query. This method is defined in PtwRespS2 and internally divides hits into three types: for noS2_hit (noS2xlate), only s1 hit needs to be checked; for onlyS2_hit (onlyStage2), only s2 hit needs to be checked; for all_onlyS1_hit (allStage or onlyStage1), the vpnhit logic must be redesigned—it cannot simply check s1hit. The level for vpn_hit should use the maximum of s1 and s2, then determine the hit based on the level, and include checks for vasid (from vsatp) hit and vmid hit.

Supports reissuing PTW to obtain gpaddr after a guest page fault.

Since the L1TLB does not store the gpaddr from translation results, when a guest page fault occurs after querying a TLB entry, a new PTW is required to obtain the gpaddr. In this case, the TLB response remains a miss. Additional registers have been added for this purpose.

New Registers for Obtaining gpaddr
Name	type	function
need_gpa.	Bool	Indicates that there is currently a request acquiring gpaddr
need_gpa_robidx	RobPtr	robidx of the request to obtain gpaddr
need_gpa_vpn	vpnLen	The vpn of the request to obtain gpaddr
need_gpa_gvpn	vpnLen	Stores the gvpn of the obtained gpaddr
need_gpa_refill	Bool	Indicates that the gpaddr of this request has been filled into need_gpa_gvpn

When a TLB query results in a guest page fault, a PTW is required again. At this point, need_gpa is set to valid, the requested vpn is filled into need_gpa_vpn, the requested robidx is filled into need_gpa_robidx, and resp_gpa_refill is initialized to false. When the PTW response is received and it is determined through need_gpa_vpn that it is a previously sent request to obtain gpaddr, the s2 tag from the PTW response is filled into need_gpa_gvpn, and need_gpa_refill is set to valid, indicating that the gvpn of gpaddr has been obtained. When the previous request re-enters the TLB, this need_gpa_gvpn can be used to calculate gpaddr and return it. Once a request completes this process, need_gpa is invalidated. Here, resp_gpa_refill remains valid, so the refilled gvpn may be used by other TLB requests (as long as they match need_gpa_vpn).

Additionally, a redirect may occur, changing the entire instruction flow and preventing previously issued gpaddr requests from entering the TLB. If a redirect happens, the need_gpa_robidx register is used to determine whether to invalidate TLB registers related to gpaddr fetching.

Additionally, to ensure that PTW requests for obtaining gpaddr do not refill the TLB upon return, a new output signal, getGpa, is added when sending PTW requests. This signal follows a path similar to memidx and can be referenced accordingly. The signal is passed into the Repeater, and when the PTW resp returns to the TLB, this signal is also sent back. If the signal is valid, it indicates that this PTW request is solely for obtaining gpaddr, and thus the TLB will not be refilled.

Regarding the handling process of obtaining gpaddr after a guest page fault occurs, key points are reiterated here:

The mechanism for obtaining GPA can be viewed as a buffer with only one entry. When a guest page fault occurs for a request, the corresponding information of need_gpa is written into this buffer. The GPA information remains until the conditions need_gpa_vpn_hit && resp_gpa_refill are met, or a flush (itlb)/redirect (dtlb) signal is received to refresh the GPA information.
need_gpa_vpn_hit refers to: after a guest page fault occurs for a request, the vpn information is written into need_gpa_vpn. If the same vpn queries the TLB again, the need_gpa_vpn_hit signal is raised, indicating that the obtained gpaddr corresponds to the original get_gpa request. If resp_gpa_refill is also high at this time, it means the vpn has already obtained the corresponding gpaddr, which can be returned to the frontend for instruction fetch or backend for memory access to handle the exception.
Therefore, for any frontend or memory access request that triggers a GPA, one of the following two conditions must subsequently be satisfied:
1. The request triggering gpa can always be resent (the TLB will return a miss for the request until the gpaddr result is obtained).
2. It is necessary to flush or redirect the gpa request by sending a flush or redirect signal to the TLB. Specifically, for all possible requests:
  1. ITLB fetch request: If a gpf fetch request occurs on the speculative path and incorrect speculation is detected, it will be flushed via the flushPipe signal (including backend redirect or updates from the frontend multi-level branch predictor where later-stage predictor results update earlier-stage predictor results, etc.). For other cases, since the ITLB will return a miss for the request, the frontend ensures the same vpn request is resent.
  2. DTLB load request: If a gpf load request is on a speculative path and incorrect speculation is detected, it will be flushed via the redirect signal (the relationship between the robidx of the gpf and the robidx of the incoming redirect must be determined). For other cases, since the DTLB will return a miss for the request and simultaneously assert the tlbreplay signal, ensuring the load queue can replay the request.
  3. DTLB store request: If a gpf store request is on a speculative path and incorrect speculation is detected, it will be flushed via the redirect signal (requires comparing the robidx of the gpf with the robidx of the incoming redirect). For other cases, since the DTLB will return a miss for this request, the backend will reschedule the store instruction to resend the request.
  4. DTLB prefetch request: The returned GPF signal will be asserted, indicating a GPF occurred for the prefetch request address. However, it will not write to the GPA* series of registers, will not trigger the GPADDR lookup mechanism, and thus requires no further consideration.
  5. Under the current handling mechanism, it is necessary to ensure that a TLB entry waiting for a gpa during a gpf is not evicted. Here, we simply block TLB refills when waiting for a gpa to prevent replacement. Since a gpf triggers exception handling and subsequent instructions are flushed, blocking refills during gpa waiting does not cause performance issues.

Overall Block Diagram

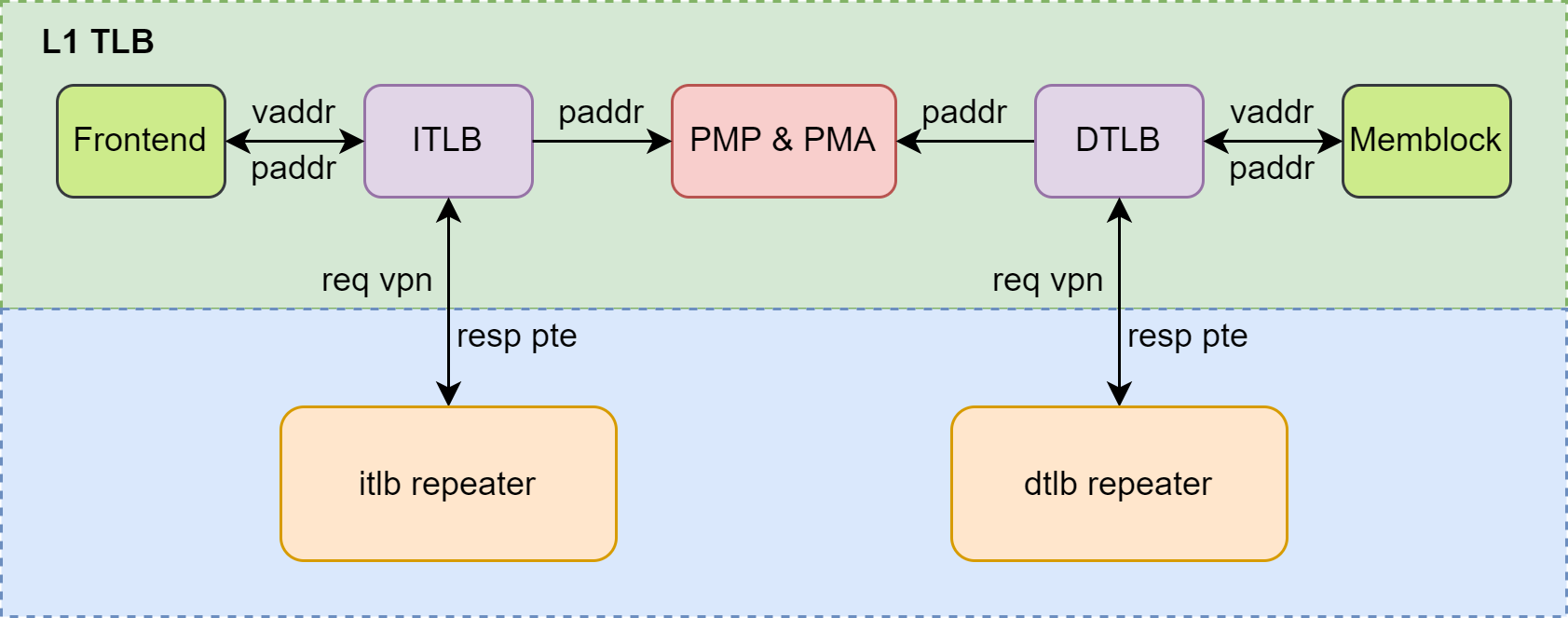

The overall block diagram of the L1 TLB is described in 此图, including the ITLB and DTLB within the green box. The ITLB receives PTW requests from the Frontend, while the DTLB receives PTW requests from the Memblock. PTW requests from the Frontend include 3 requests from the ICache and 1 request from the IFU. PTW requests from the Memblock include 2 requests from the LoadUnit (with the AtomicsUnit occupying one of the LoadUnit's request channels), 1 request from the L1 Load Stream & Stride prefetch, 2 requests from the StoreUnit, and 1 request from the SMSPrefetcher.

After obtaining results from ITLB and DTLB queries, PMP and PMA checks are required. Due to the small size of L1 TLB, the backup of PMP and PMA registers is not stored within L1 TLB but in the Frontend or Memblock, providing checks for ITLB and DTLB respectively. Upon a miss in ITLB or DTLB, a query request must be sent to L2 TLB via the repeater.

Interface timing

ITLB and Frontend interface timing

PTW Request from Frontend to ITLB Hits in ITLB

The timing diagram for PTW requests sent by the Frontend to the ITLB when the ITLB hits is shown in 此图.

Timing diagram of a PTW request from the Frontend hitting the ITLB

When a PTW request sent by the Frontend to the ITLB hits in the ITLB, the resp_miss signal remains 0. On the next clock rising edge after req_valid becomes 1, the ITLB sets the resp_valid signal to 1 and returns the physical address translated from the virtual address to the Frontend, along with information on whether a guest page fault, page fault, or access fault occurred. The timing is described as follows:

Cycle 0: The Frontend sends a PTW request to the ITLB, with req_valid set to 1.
Cycle 1: ITLB returns the physical address to Frontend, with resp_valid set to 1.

PTW requests sent by the Frontend to the ITLB miss the ITLB.

When a PTW request sent by Frontend to ITLB misses in ITLB, the timing diagram is as shown in 此图.

Timing Diagram of PTW Request from Frontend to ITLB Missing ITLB

When a PTW request from the Frontend misses in the ITLB, the ITLB returns a resp_miss signal in the next cycle, indicating an ITLB miss. At this point, the requestor channel of the ITLB no longer accepts new PTW requests, and the Frontend repeats the same request until the page table is found in the L2 TLB or memory and a response is returned. (Note: "The requestor channel of the ITLB no longer accepts new PTW requests" is controlled by the Frontend. This means that whether the Frontend chooses not to resend the missed request or to resend another request, the Frontend's behavior is transparent to the TLB. If the Frontend sends a new request, the ITLB will directly discard the old request.)

When an ITLB miss occurs, a PTW request is sent to the L2 TLB until a result is obtained. The timing interaction between the ITLB and L2 TLB, as well as the return of physical addresses and other information to the Frontend, can be seen in the timing diagram of Figure 4.4 and the following timing description:

Cycle 0: The Frontend sends a PTW request to the ITLB, with req_valid set to 1.
Cycle 1: The ITLB query results in a miss, returning resp_miss as 1 and resp_valid as 1 to the Frontend. Simultaneously, the ITLB sends a PTW request to the L2 TLB (specifically to itlbrepeater1) in the same cycle, with ptw_req_valid set to 1.
Cycle X: The L2 TLB returns a PTW response to the ITLB, including the requested virtual page number, obtained physical page number, page table information, etc., with ptw_resp_valid set to 1. In this cycle, the ITLB has already received the PTW response from the L2 TLB, and ptw_req_valid is set to 0.
Cycle X+1: ITLB hits at this point, with resp_valid being 1 and resp_miss being 0. ITLB returns the physical address to Frontend along with information on whether an access fault or page fault occurred.
Cycle X+2: The resp_valid signal returned by the ITLB to the Frontend is set to 0.

DTLB and Memblock interface timing

PTW request sent by Memblock to DTLB hits in DTLB

When a PTW request sent by MemBlock to the DTLB hits, the timing diagram is shown in 此图.

Timing diagram of PTW request from Memblock to DTLB hitting DTLB

When the PTW request sent by Memblock to the DTLB hits in the DTLB, the resp_miss signal remains 0. On the next clock rising edge after req_valid is set to 1, the DTLB will set the resp_valid signal to 1, simultaneously returning the physical address translated from the virtual address to Memblock, along with information such as whether a page fault or access fault occurred. The timing description is as follows:

Cycle 0: Memblock sends a PTW request to the DTLB with req_valid set to 1.
Cycle 1: The DTLB returns the physical address to MemBlock, with resp_valid set to 1.

PTW Request from Memblock to DTLB Misses in DTLB

DTLB and ITLB operate similarly, both supporting non-blocking access (i.e., the TLB internally does not include blocking logic. If the request source remains unchanged, meaning it continuously resends the same request after a miss, it exhibits behavior similar to blocking access. If the request source schedules other different requests to query the TLB after receiving a miss feedback, it exhibits behavior similar to non-blocking access). Unlike frontend instruction fetching, when a PTW request sent by Memblock to DTLB misses in DTLB, it does not block the pipeline. DTLB will return a miss signal and resp_valid to Memblock in the next cycle after req_valid. Upon receiving the miss signal, Memblock can proceed with scheduling and continue querying other requests.

After a DTLB miss occurs during a Memblock access, the DTLB sends a PTW request to the L2 TLB to query the page table from either the L2 TLB or memory. The DTLB forwards the request to the L2 TLB via a Filter, which can merge duplicate requests from the DTLB to the L2 TLB, ensuring no duplicates in the DTLB and improving L2 TLB utilization. The timing diagram for a PTW request from Memblock to the DTLB that misses in the DTLB is shown in 此图, which only depicts the process from the miss to the DTLB sending the PTW request to the L2 TLB.

Timing Diagram of PTW Request from Memblock to DTLB Missing in DTLB

After the DTLB receives the PTW response from the L2 TLB, it stores the page table entry in the DTLB. When Memblock accesses the DTLB again, a hit occurs, similar to the scenario in 此图. The timing interaction between DTLB and L2 TLB is the same as the ptw_req and ptw_resp parts in 此图.

TLB and tlbRepeater interface timing

TLB sends a PTW request to tlbRepeater

The timing diagram of the PTW request interface from the TLB to the tlbRepeater is shown in 此图.

Timing diagram of TLB sending PTW request to Repeater

In the Kunminghu architecture, both ITLB and DTLB employ non-blocking access. On a TLB miss, a PTW request is sent to the L2 TLB, but the pipeline and the PTW channel between the TLB and Repeater are not blocked while waiting for the PTW response. The TLB can continuously send PTW requests to the tlbRepeater, which merges duplicate requests based on their virtual page numbers to avoid resource wastage in the L2 TLB and duplicate entries in the L1 TLB.

As shown in the timing relationship of 此图, in the next cycle after the TLB sends a PTW request to the Repeater, the Repeater continues to forward the PTW request downstream. Since the Repeater has already sent a PTW request for virtual page number vpn1 to the L2 TLB, when it receives another PTW request with the same virtual page number, it will not forward it to the L2 TLB again.

itlbRepeater returns the PTW response to the ITLB.

The interface timing diagram for the itlbRepeater returning PTW responses to the ITLB is shown in 此图.

Timing diagram of itlbRepeater returning PTW response to ITLB

The timing description is as follows:

Cycle X: The itlbRepeater receives the PTW response from the lower-level itlbRepeater via the L2 TLB, with itlbrepeater_ptw_resp_valid asserted high.
Cycle X+1: The ITLB receives a PTW response from itlbRepeater.

dtlbRepeater Returns PTW Response to DTLB

The timing diagram for the interface where dtlbRepeater returns PTW responses to the DTLB is shown in 此图.

Timing Diagram of DTLBRepeater Returning PTW Response to DTLB

The timing description is as follows:

Cycle X: dtlbRepeater receives the PTW response from the L2 TLB passed through the lower-level dtlbRepeater, with dtlbrepeater_ptw_resp_valid high.
Cycle X+1: dtlbRepeater passes the PTW response to memblock.
Cycle X+2: The DTLB receives the PTW response.
