Level-3 Module Page Table Walker

Page Table Walker refers to the following module:

  • PTW ptw

Design specifications

  1. Supports accessing the first two levels of the page table.
  2. Support sending PTW requests to memory
  3. Supports forwarding PTW requests to LLPTW.
  4. Supports sending refill signals to the Page Cache.
  5. Support for exception handling
  6. Supports two-stage address translation.

Function

Accessing the first two levels of page tables

The Page Table Walker is fundamentally a state machine that traverses the page table level by level using virtual addresses to obtain physical addresses. It can handle only one request at a time and accesses at most the first two levels of the page table, with limited memory access capability. Its behavior in virtual-to-physical address translation aligns with the manual description, requiring PMP checks on the physical address before memory access. If a PMP check fails, it returns immediately; otherwise, it sends a PTW request to memory or LLPTW. With the addition of the H extension, PTW still handles the first two levels of translation in the first stage, but the physical addresses calculated during these translations must undergo a second-stage translation to obtain the true physical address before memory access. It also supports scenarios with only second-stage or only first-stage translation. When memory returns a page table entry, PMP checks are also performed. The Page Table Walker continues these operations until one of the following three conditions occurs:

  1. Accessing a leaf node (large page) directly returns to the L1 TLB (for all-stage translations, a second-stage translation is performed before returning).
  2. Upon accessing the second-level page table, it returns to LLPTW, which handles the final level of page table access.
  3. A Page fault or Access fault occurred during access.

Sends a PTW request to memory or llptw.

When the Page Table Walker accesses the first two levels of the page table, it needs to send a PTW request to memory. Upon completing the access to the first two levels, it must send a PTW request to LLPTW. Requests sent by PTW, LLPTW, and HPTW to memory require arbitration before being dispatched, with the TileLink protocol's A and D channel source signals indicating whether the request originates from PTW, LLPTW, or HPTW.

Send a refill signal to the Page Cache

When the PTW request sent by the Page Table Walker to memory receives a response, it sends a refill request to the Page Cache. Mem will refill the returned page table entry into the Page Cache, but the Page Table Walker needs to additionally provide the virtual page number, page table level, and page table type. Depending on whether the translation request is a two-stage address translation request, the page tables refilled into the Page Cache are categorized as noS2xlate and onlyStage1.

Exception Handling Mechanism

An access fault exception may occur in the Page Table Walker, which will be delivered to the L1 TLB. The L1 TLB handles it based on the request source. Refer to Section 6 of this document: Exception Handling Mechanism.

Overall Block Diagram

The essence of the Page Table Walker is a software state machine divided into request and response events. Each state is represented by a pair of request and response events, depicted here using a common state machine transition diagram and relationships for clarity. For details on the connections between the Page Table Walker and other modules in the L2 TLB, refer to Section 5.3.3.

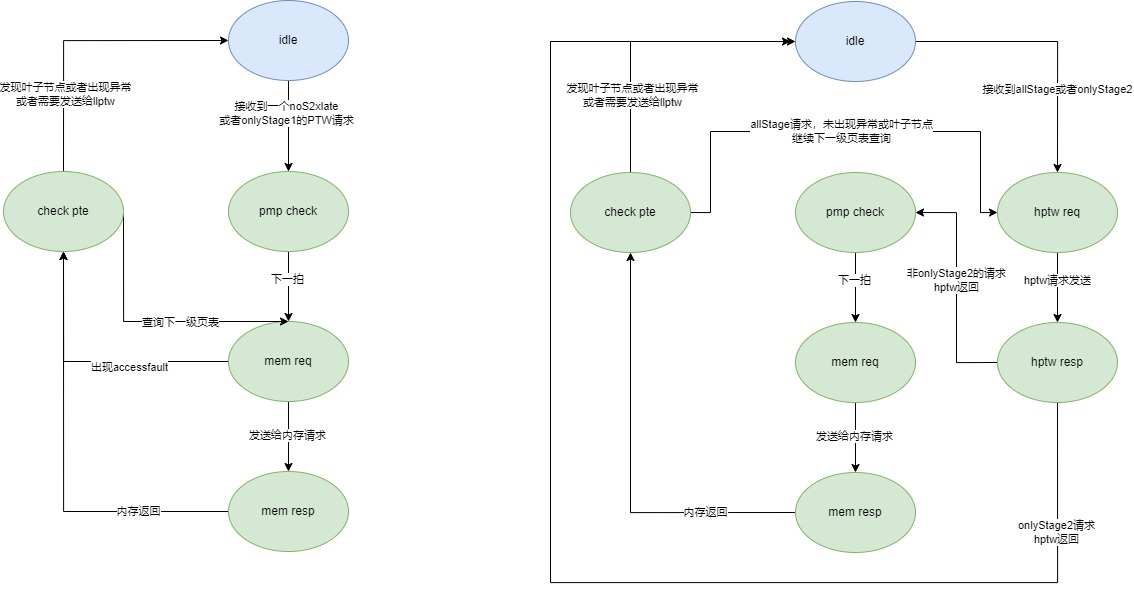

The state machine transition diagram is shown in 此图.

State transition diagram of the Page Table Walker state machine

To clearly represent the states, different types of requests are divided into two types of state machines, each with its own transition diagram.

For the state machine of noS2xlate or onlyStage1 requests (left side of the diagram), the descriptions of each state are as follows:

  • idle: The initial state of the Page Table Walker. Upon receiving a request, the PTW enters the pmp check state.
  • pmp check: In this state, the physical address to be accessed is sent to the PMP module for PMP and PMA checks. In the next cycle, it enters the mem req state. The PMP module returns the check result in the same cycle, indicating whether an access fault occurred.
  • mem req: Based on the check results, if an access fault occurs, it directly enters the final check pte state (indicated by the mem_addr_update signal being valid in the chisel code). If no access fault occurs, a memory access request is sent, and the state transitions to mem resp.
  • mem resp: This state waits for memory to respond, transitioning to the check PTE state upon receipt.
  • check pte: In this state, the current request is examined to determine the next action:
    1. No leaf node found and no access fault occurred. At this point, the level is the first-level page table, transitioning to the mem req state.
    2. If an access fault occurs, it directly returns to the L1TLB, transitioning the state to idle.
    3. If a second-level page table is found and it is not a leaf node, it is forwarded to LLPTW.
    4. Found a leaf node (large page), returns it to the L1TLB.

For allStage and onlyStage2 requests:

  • idle: Upon receiving these two types of requests, it enters the hptw req state and immediately begins the second-stage translation.
  • hptw req: Sends a request for second-stage translation to the L2TLB, then transitions to the hptw resp state after the request is sent.
  • hptw resp: Waits for the hptw request to return. Upon return, if the current request is onlyStage2, it directly enters the check pte state; otherwise, it proceeds to the pmp check state.
  • pmp check: In this state, the physical address to be accessed is sent to the PMP module for PMP and PMA checks. In the next cycle, it enters the mem req state. The PMP module returns the check result in the same cycle, indicating whether an access fault occurred.
  • mem req: Based on the check results, if an access fault occurs, it directly enters the final check pte state (indicated by the mem_addr_update signal being valid in the chisel code). If no access fault occurs, a memory access request is sent, and the state transitions to mem resp.
  • mem resp: This state waits for memory to respond, transitioning to the check PTE state upon receipt.
  • check pte: For non-onlyStage2 requests (i.e., allStage), if no leaf node is found and no access fault occurs, it enters the hptw req state. If no leaf node is found and the level is already a second-level page table, the request is sent to llptw. If the last s2xlate signal is active at this time, it indicates that a second-stage address translation is still required before returning (onlyStage2 requests do not need this). If a leaf node is found and the final address translation is completed, it returns to the L1TLB.

Note that the PTW also handles allStage requests where stage1 hits. Upon receiving such a request, it performs a second-stage translation and directly returns to the L1TLB.

Interface list

The signal list of the Page Table Walker can be categorized into the following types:

  1. req: The Page Table Walker only accepts requests from the Page Cache, and certain conditions must be met. Refer to Section 5.3.7 for details on the Page Cache.
  2. resp: The Page Table Walker returns relevant information to the L1 TLB when accessing a large page or encountering a PMP&PMA check error.
  3. llptw: If the Page Table Walker accesses only the last level of the page table or if the PMP&PMA check reports an error, the relevant information is returned to the L1 TLB.
  4. mem: The interaction between the Page Table Walker and memory when accessing memory, involving req and resp. The handshake signals between the Page Table Walker and memory also control the state transitions of the Page Table Walker state machine.
  5. pmp: Interaction between the Page Table Walker and the PMP module for PMP and PMA checks.
  6. refill: After accessing memory and obtaining the result, the Page Table Walker needs to refill the memory-returned result and related information into the Page Cache.
  7. hptw: After obtaining the guest physical address, the Page Table Walker sends a second-stage translation request to the L2TLB. The L2TLB then returns the query result to the PTW.

For details, refer to the interface list documentation.

Interface timing

The Page Table Walker interacts with other modules in the L2 TLB using a valid-ready handshake. The involved signals are trivial, and there are no particularly noteworthy timing relationships, so further details are omitted.
