IPrefetchPipe submodule documentation

The IPrefetchPipe is a prefetch pipeline designed as a two-stage pipeline, responsible for filtering prefetch requests.

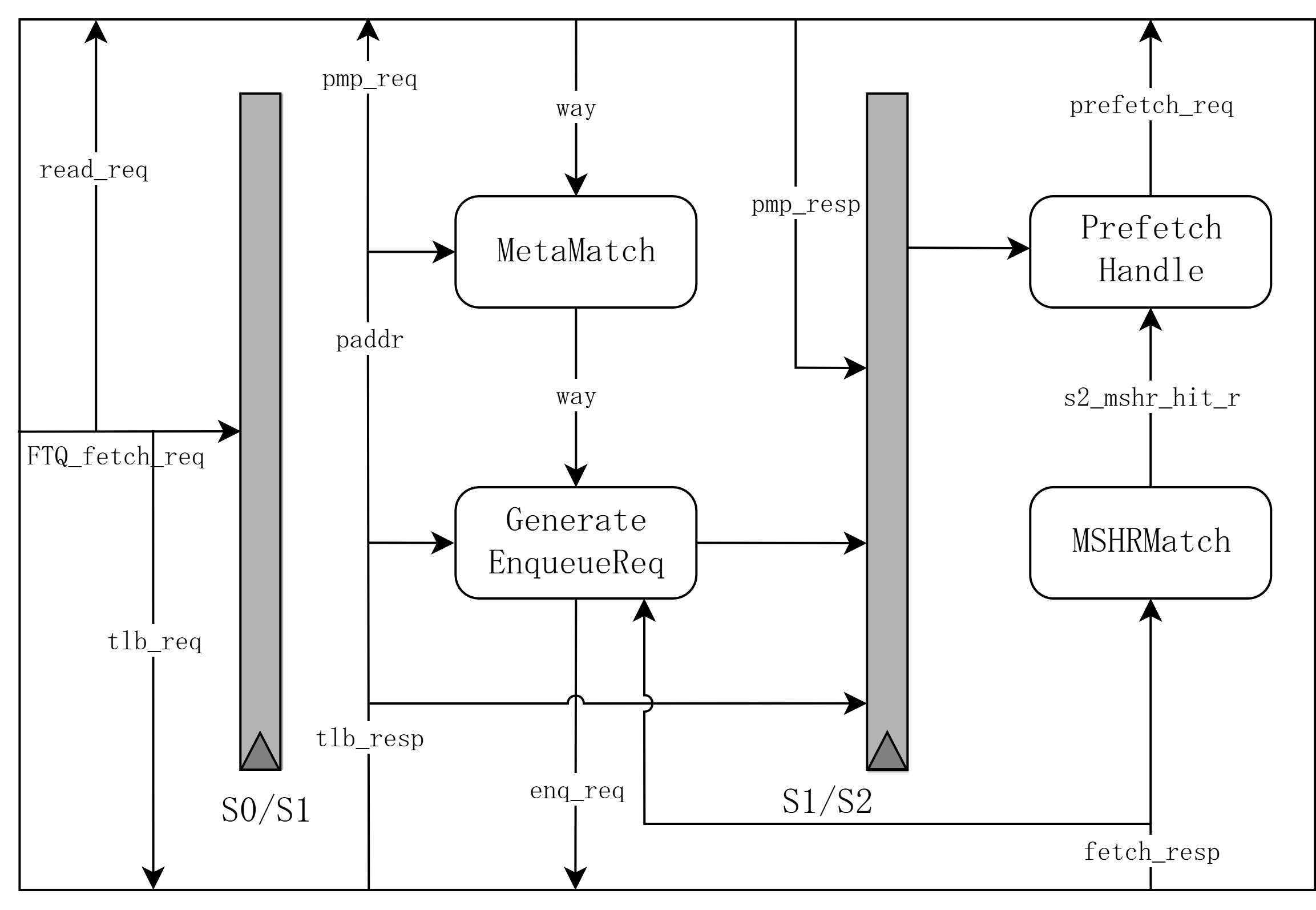

IPrefetchPipe structure

S0 pipeline stage

In the S0 pipeline stage, it receives prefetch requests from the FTQ/backend and sends read requests to the MetaArray and ITLB.

S1 pipeline stage

First, it receives the response from the ITLB to obtain the paddr, then compares it with the tag returned by the MetaArray to determine the hit information. The metadata (hit information waymask, ITLB information paddr/af/pf) is written into WayLookup. Simultaneously, a PMP check is performed, and the result is registered for the next pipeline stage.

Controlled by the state machine:

  • The initial state is idle. When a new request enters the S1 pipeline stage, it first checks whether the ITLB is missing. If it is missing, it enters itlbResend; if the ITLB hits but the hit information has not been enqueued into WayLookup, it enters enqWay; if the ITLB hits and WayLookup is enqueued but the S2 request has not been fully processed, it enters enterS2.
  • In the itlbResend state, resend a read request to the ITLB, occupying the ITLB port (thus blocking new prefetch requests entering the S0 pipeline stage) until the request is refilled. On the cycle when refill completes, send another read request to the MetaArray. During refill, new writes may occur. If the MetaArray is busy (being written by MSHR), transition to metaResend; otherwise, proceed to enqWay.
  • In the metaResend state, it resends a read request to the MetaArray. Upon successful sending, it enters enqWay.
  • In the enqWay state, it attempts to enqueue the metadata into WayLookup. If the WayLookup queue is full, it blocks until enqueuing succeeds. Additionally, enqueuing is prohibited when a new write occurs in the MSHR, primarily to prevent conflicts between the written information and the hit information, requiring an update to the hit information. When successfully enqueued into WayLookup, if S2 is idle, it directly returns to idle; otherwise, it enters enterS2.
  • If the current request is a software prefetch, it will not attempt to enqueue into WayLookup because this request does not need to enter the MainPipe/IFU or be executed.
  • In the enterS2 state, it attempts to flow the request to the next pipeline stage. After flowing, it returns to idle.

IPrefetchPipe S1 state machine

S2 pipeline stage

It synthesizes the hit result of the request, ITLB exceptions, and PMP exceptions to determine whether prefetching is needed. Prefetching is only performed when no exceptions exist. Since the same prediction block may correspond to two cachelines, the requests are sequentially sent to the MissUnit via the Arbiter.

Hit information update

After obtaining the hit information in the S1 pipeline stage, it takes two stages before the hit information is actually used in the MainPipe: the stage waiting to be enqueued into WayLookup in the IPrefetchPipe and the stage waiting to be dequeued in WayLookup. During this waiting period, updates to the Meta/DataArray by the MSHR may occur, so the MSHR responses need to be monitored, divided into two scenarios:

  1. Miss in MetaArray, monitored that MSHR wrote the corresponding cacheline into SRAM, need to update the hit status to hit.
  2. The request has already hit in the MetaArray, but it detects that another cacheline write has occurred at the same location, overwriting the original data. The hit information needs to be updated to a miss state.

To prevent the delay of update logic from being introduced into the access path of the DataArray, enqueuing into WayLookup is prohibited when a new write occurs in the MSHR, and it is enqueued in the next cycle.
