MainPipe is the main pipeline of ICache, designed as a 2-stage pipeline. It is responsible for reading data from DataArray, performing PMP checks, ECC checks, handling misses, and returning results to IFU.

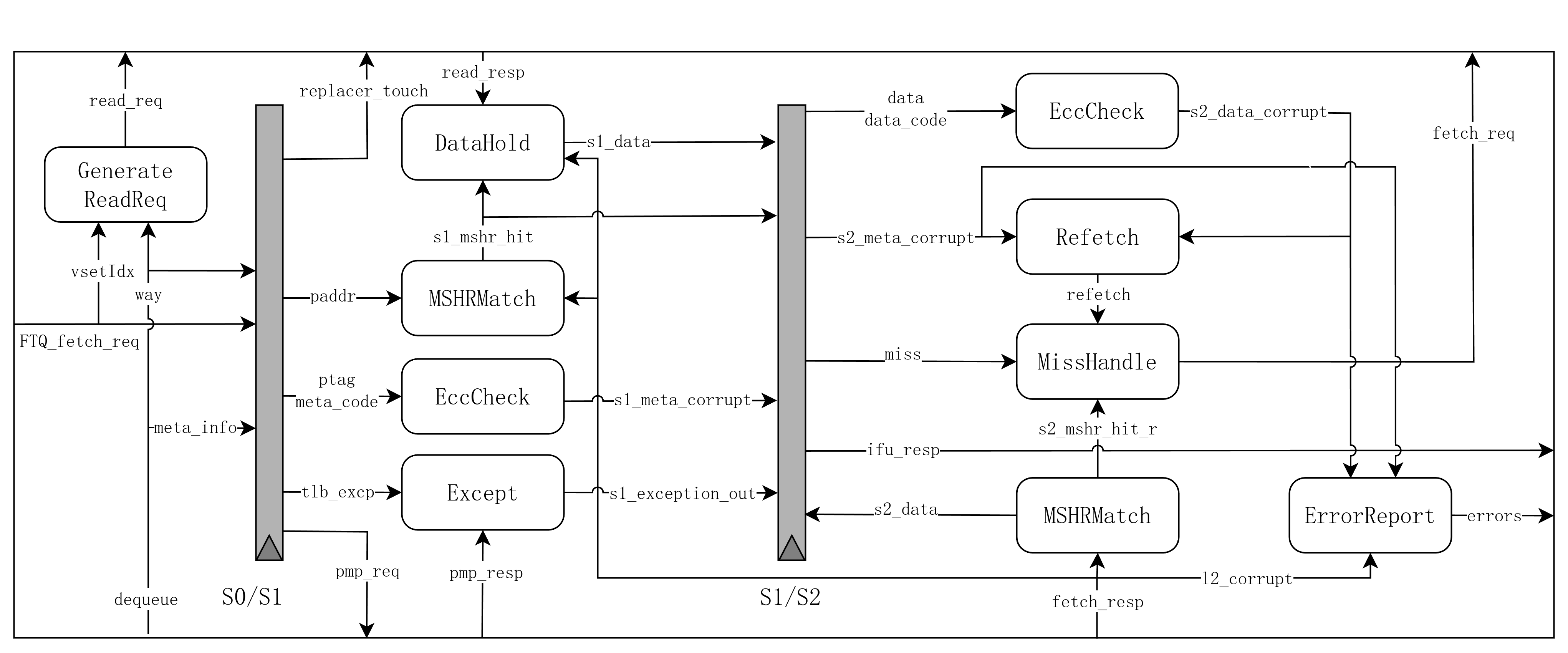

MainPipe structure

S0 pipeline stage

In the S0 pipeline stage, retrieves metadata from WayLookup, including way hit information and ITLB query results, and accesses a single way of DataArray. The pipeline stalls if DataArray is being written or if WayLookup has no valid entries. After each redirect, the same request from FTQ is sent simultaneously to MainPipe and IPrefetchPipe. MainPipe always waits for IPrefetchPipe to write the query information into WayLookup before proceeding, resulting in a 1-cycle redirect latency. This latency is hidden when prefetching outpaces instruction fetching.

S1 pipeline stage

  1. Updates the replacer by sending a touch request to it.
  2. PMP check: sends a PMP request and receives the response in the same cycle, then registers the result for processing in the next pipeline stage.
  3. It should be noted that the IPrefetchPipe s1 pipeline stage also performs PMP checks, which are identical to those performed here. Separate checks are conducted to optimize timing (avoiding the excessively long combinational logic path: ITLB(reg) -> ITLB.resp -> PMP.req -> PMP.resp -> WayLookup.write -> bypass -> WayLookup.read -> MainPipe s1(reg)).
  4. Receives and registers the data and code returned by DataArray while monitoring MSHR responses. When both DataArray and MSHR responses are valid, the latter has higher priority.

S2 pipeline stage

  1. DataArray ECC verification: checks the code registered in the S1 pipeline stage. Reports errors to BEU if verification fails.
  2. MetaArray ECC verification. After IPrefetchPipe reads data from MetaArray, it directly performs verification and enqueues the verification result along with hit information into WayLookup. This then flows through the MainPipe to the S2 stage, where it is reported to BEU together with the ECC verification result from DataArray.
  3. Tilelink error handling: when monitoring a MissUnit response with the corrupt signal high (indicating L2 cache response data error), reports the error to BEU.
  4. Miss handling: sends requests to MissUnit upon a miss while monitoring MSHR responses. On a hit, registers the MSHR response data and sends it to IFU in the next cycle for timing optimization.
