Overview of Memory Management Unit

Glossary of Terms

Memory Management Unit Terminology Explanation
Abbreviation	Full name	Descrption
MMU	Memory Management Unit	Memory Management Unit
TLB	Translation Lookaside Buffer	Page table cache
ITLB	Instruction TLB	Instruction Page Table Cache
DTLB	Data TLB	Data Page Table Cache
L1 TLB	Level 1 TLB	Level 1 TLB
L2 TLB	Level 2 TLB	Second-level TLB
SV39	Page-Based 39-bit Virtual-Memory System	A paging mechanism defined in the RISC-V manual
PGD	Page Global Directory	Page Global Directory
PMD	Page Mid-level Directory	Page middle directory
PTE	Page Table Entry	Page Table Entry
PTW	Page Table Walk	Page table lookup process.
PMP	Physical Memory Protection	Physical Memory Protection
PMA	Physical Memory Attributes	Physical Address Attributes
ASID	Address Space IDentifier	Address Space Identifier
CSR	Control and Status Register	Control and status registers
VPN	Virtual Page Number	Virtual Page Number
PPN	Physical Page Number	Physical Page Number
PLRU	Pseudo-Least Recently Used	an approximate least recently used algorithm
VMID	Virtual Machine Identifier	Virtual Machine ID
GVPN	Guest Virtual Page Number	Virtual page number for second-stage translation (guest physical address)
VS-Stage	Virtual Superior Stage	First-stage Translation
G-Stage	Guest Stage	Second-stage translation
SV39x4	A Variation on Page-Based 39-bit Virtual-Memory System	SV39 with two-bit address extension, root page table now 16KB
HPTW	Hypervisor Page Table Walker	Handles page table lookup for the second-stage translation
GPA	Guest Physical Address	Guest Physical Address

Design specifications

The overall design specifications of the MMU module are as follows:

Supports converting virtual addresses to physical addresses
Supports Sv39 paging mechanism
Support accessing page tables in memory
supports dynamic and static PMP checks
Supports dynamic and static PMA checks
Supports ASID
Support Sfence.vma
Support software update A/D bits
Supports two-stage address translation with the H extension.
Supports the Sv39x4 paging mechanism
Supports VMID
Supports hfence.vvma and hfence.gvma

Functional Description

The MMU module of Xiangshan consists of L1 TLB, Repeater, L2 TLB, PMP and PMA modules. The L2TLB module is further divided into five parts: Page Cache, Page Table Walker, Last Level Page Table Walker, Miss Queue, and Prefetcher. Before memory read and write operations within the core, including front-end instruction fetch and back-end memory access, address translation must be performed by the MMU module. Front-end instruction fetch and back-end memory access perform address translation through ITLB and DTLB respectively, both using non-blocking access. Specifically, MMIO uses blocking ITLB for address translation. The TLB needs to return whether a request is a miss, report this to the request source, and the request source will then schedule and resend the TLB query request until a hit occurs. For missed Load requests, the Kunminghu architecture supports TLB Hint, meaning that when the L2 TLB refills the page table into the L1 TLB, it can precisely wake up the Load instruction that was stalled due to the TLB miss of that virtual address. When a miss occurs in the L1 TLB (ITLB and DTLB), the L2 TLB is accessed. If the L2 TLB still misses, the page table in memory is accessed via the Page Table Walker.

The Repeater serves as a request buffer between the L1 TLB and L2 TLB, adding pipeline stages due to the significant physical distance between them. Since both the ITLB and DTLB support multiple outstanding requests, the Repeater also functions similarly to an MSHR, filtering duplicate requests. The MMU module performs permission checks on physical address accesses, divided into PMP and PMA components. PMP and PMA checks are conducted in parallel, and violating either permission constitutes an illegal operation. All physical address accesses within the core must undergo these checks, including after ITLB and DTLB checks and before Page Table Walker memory accesses.

With the addition of the H extension, the L2TLB now includes a Hypervisor Page Table Walker module primarily responsible for second-stage translation, along with partial architectural modifications to the L2TLB.

Supports Sv39 paging mechanism, translating virtual addresses to physical addresses

To achieve process isolation, each process has its own address space and uses virtual addresses. The MMU translates virtual addresses into physical addresses, which are then used for memory access. The Xiangshan processor's Kunminghu architecture supports the Sv39 paging mechanism (see the RISC-V Privileged Specification), with a 39-bit virtual address. The lower 12 bits are the page offset, and the upper 27 bits are divided into three segments (9 bits each), forming a three-level page table. The Kunminghu architecture uses a 36-bit physical address. The structures of virtual and physical addresses are shown in 此图、此图. Traversing the page table requires three memory accesses, necessitating the use of a TLB to cache page tables.

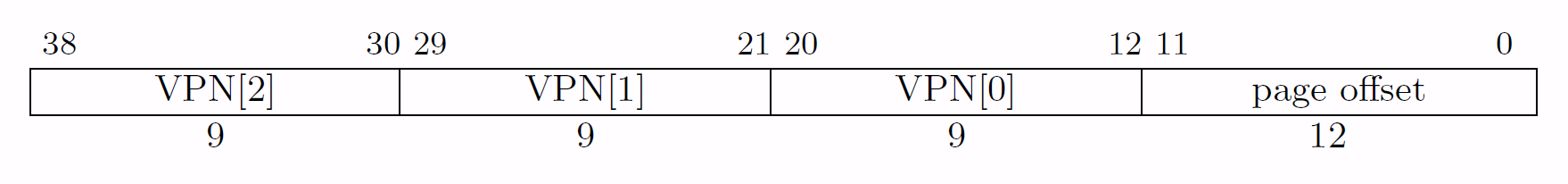

Virtual Address Structure of Xiangshan Processor

Physical Address Structure of Xiangshan Processor

During address translation, frontend instruction fetch performs address translation via ITLB, while backend memory access uses DTLB. If ITLB or DTLB miss, requests are sent to the L2 TLB via the Repeater. In the current design, both frontend instruction fetch and backend memory access employ non-blocking TLB access—when a request misses, the miss information is returned, and the request source schedules a resend of the TLB query until a hit occurs.

Meanwhile, the memory access subsystem has 3 Load pipelines, 2 Store pipelines, as well as an SMS prefetcher and an L1 Load stream & stride prefetcher. To handle numerous requests, the two Load pipelines and the L1 Load stream & stride prefetcher use the Load DTLB, the two Store pipelines use the Store DTLB, and prefetch requests use the Prefetch DTLB, for a total of 3 DTLBs.

To avoid duplicate entries in the TLB, the ITLB repeater and DTLB repeater receive requests from the ITLB and DTLB respectively, filtering out duplicate requests before forwarding them to the L2 TLB. If an L2 TLB miss occurs, the Hardware Page Table Walker is used to access the page table contents in memory. The retrieved page table contents are then returned to the Repeater and ultimately back to the ITLB and DTLB. (Refer to Overall Design)

Supports two-stage address translation for virtualization.

After the H extension is added, in non-virtualization mode and without executing virtualization memory access instructions, the address translation process remains largely the same as without the H extension. In virtualization mode or when executing virtualization memory access instructions, the two-stage translation (VS-stage and G-stage) is determined by vsatp and hgatp. The VS-stage converts guest virtual addresses to guest physical addresses, while the G-stage converts guest physical addresses to host physical addresses. The first-stage translation is similar to non-virtualized translation, and the second-stage translation is performed in the PTW and LLPTW modules. The lookup logic is as follows: first, search the Page Cache; if found, return to PTW or LLPTW; if not found, proceed to HPTW for translation, which then returns and populates the Page Cache.

In G-stage, the paging mechanism is called Sv39x4, where virtual addresses in this mode are 41 bits wide, and the root page table expands to 16KB.

Virtual address structure (guest physical address) of the Xiangshan processor's Sv39x4

In two-stage address translation, the addresses obtained from the first stage of translation (including the page table addresses calculated during the translation process) are all guest physical addresses. These must undergo a second stage of translation to obtain the actual physical addresses before memory access can proceed to read the page tables. The logical translation process is illustrated as follows 此图、此图.

Sv39 - Sv39x4 Two-Stage Address Translation Process

Sv48 - Sv48x4 Two-Stage Address Translation Process

Supports accessing page table contents in memory

When the L1 TLB sends a request to the L2 TLB, it first accesses the Page Cache. For non-two-stage translation requests, if a leaf node is hit, the result is directly returned to the L1 TLB. Otherwise, based on the page table level hit in the Page Cache and the availability of the Page Table Walker, Last Level Page Table Walker, or Miss Queue, the request is forwarded accordingly (see Section 5.3). For two-stage address translation requests, since the Page Cache can only handle one query at a time, the request first queries the first-stage page table in the Page Cache. If the first stage hits, the request is sent to the Page Table Walker for second-stage translation. If the first stage misses, the request is forwarded to either the Page Table Walker or Last Level Page Table Walker based on the hit page table level, where second-stage translation is performed. Second-stage translation requests from the Page Table Walker and Last Level Page Table Walker are first sent to the Page Cache for querying. If a hit occurs, the Page Cache directly returns the result to the corresponding module. If a miss occurs, the request is sent to the Hypervisor Page Table Walker for translation, with the result returned directly to the Page Table Walker or Last Level Page Table Walker. The Page Table Walker can only handle one request at a time, performing Hardware Page Table Walk. It accesses the first two levels of page tables in memory but not 4KB page tables. If the Page Table Walker hits a 2MB or 1GB leaf node or encounters a Page fault or Access fault, it returns the result to the L1 TLB; otherwise, the request is forwarded to the Last Level Page Table Walker to access the final level (4KB) page table in memory. The Hypervisor Page Table Walker can only process one request at a time, so second-stage translation requests in the Last Level Page Table Walker are sent serially. The Hypervisor Page Table Walker may trigger a Page fault or Access fault, which is returned to the PTW or LLPTW, which in turn returns it to the L1TLB.

The Page Table Walker, Last Level Page Table Walker, and the newly added Hypervisor Page Table Walker can all send requests to memory to access page table contents. Before accessing page table contents in memory via physical addresses, the physical address must be checked by the PMP and PMA modules (see Sections 3.2.3 and 5.4). If an access fault occurs, no request is sent to memory. Requests from the Page Table Walker, Last Level Page Table Walker, and Hypervisor Page Table Walker are arbitrated and then sent to the L2 Cache via the TileLink bus. The L2 Cache has a memory access width of 512 bits, so it returns 8 page table entries per request.

The MMU of Kunming Lake implements a page table compression mechanism that compresses consecutive page table entries. Specifically, for page table entries with the same high-order bits of the virtual page number, when the high-order bits of their physical page numbers and page table attributes are also identical, these entries can be compressed into a single entry, thereby increasing the effective capacity of the TLB. Consequently, when the L2 TLB hits a 4KB page, it can return up to 8 consecutive page table entries (refer to Section 5.2 for details on the L2 TLB). In the H extension, the page table compression mechanism related to virtualization extensions in the L1TLB is invalidated and treated as a single page table entry, while the L2TLB still employs the page table compression mechanism for virtualization-related entries.

Supports permission checks for physical address access.

Xiangshan supports PMP and PMA checks, which are performed in parallel. Violating either permission constitutes an illegal operation. PMP and PMA implementations are divided across four components: CSR Unit, Frontend, Memblock, and L2 TLB. In the Kunminghu architecture, both PMP and PMA have 16 entries. For details on PMP/PMA register address spaces and configuration registers, refer to Section 5.4.

The CSR Unit is responsible for responding to CSR instructions like CSRRW for reading and writing these PMP and PMA registers. Backups of these PMP and PMA registers are stored in the Frontend, Memblock, and L2 TLB for address checking. By pulling the CSR write signals, the consistency of these registers is ensured. Due to the small size of L1 TLB, the backups of PMP and PMA registers are stored in the Frontend or Memblock, providing checks for ITLB and DTLB respectively. The larger size of L2 TLB allows the backups of PMP and PMA registers to be stored directly within it.

After querying results in the ITLB and DTLB, and before accessing memory with physical addresses in the L2 TLB, PMP and PMA checks must be performed. According to the manual, PMP and PMA checks should be dynamic, meaning they must be performed after TLB translation using the translated physical address for physical address permission checks. For timing considerations, the PMP & PMA check results for the DTLB can be queried in advance and stored in the TLB entry during backfill, which constitutes static checking. Specifically, when the L2 TLB page table entry is backfilled into the DTLB, the backfilled page table entry is simultaneously sent to PMP and PMA for permission checks. The resulting attribute bits (including R, W, X, C, Atomic; see Section 5.4 for specific meanings of these bits) are stored in the DTLB, allowing these check results to be directly returned to MemBlock without rechecking. To implement static checking, the granularity of PMP and PMA must be increased to 4KB.

It is important to note that currently, PMP & PMA checks are not the timing bottleneck for Kunming Lake, hence static checks are not employed; all checks are performed dynamically, i.e., after obtaining the physical address through TLB lookup. The Kunming Lake V1 code does not include static checks, only dynamic checks—please take note again. However, for compatibility, the granularity of PMP and PMA remains at 4KB.

supports memory management fence instructions

Kunminghu V2R2 supports memory management fence instructions such as SFENCE.VMA, HFENCE.VVMA, and HFENCE.GVMA.

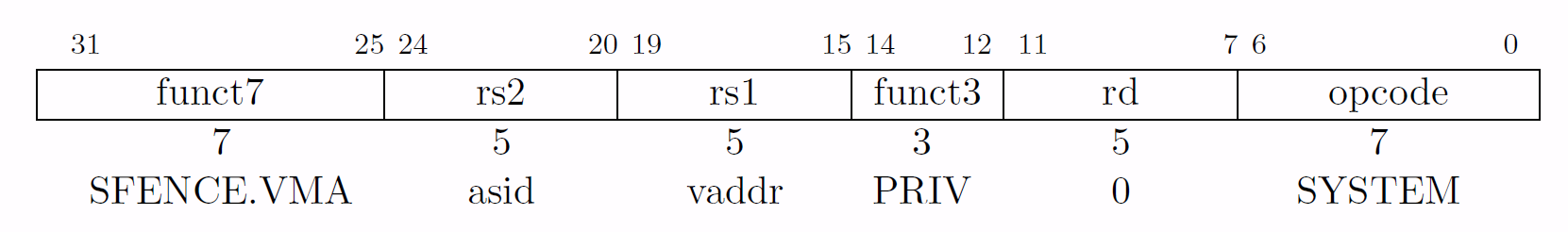

When the Sfence.vma instruction is executed, it first writes all contents of the Store Buffer back to the DCache, then issues a flush signal to various parts of the MMU. The flush signal is unidirectional, lasting only one cycle with no return signal. The Sfence.vma instruction ultimately flushes the entire pipeline, restarting execution from fetch. It cancels all inflight requests, including those in the Repeater and Filter, as well as inflight requests in the L1TLB and L2 TLB, and flushes cached page tables in the L1 TLB and L2 TLB based on the address and ASID. The parameters of the Sfence.vma instruction are shown in 此图.

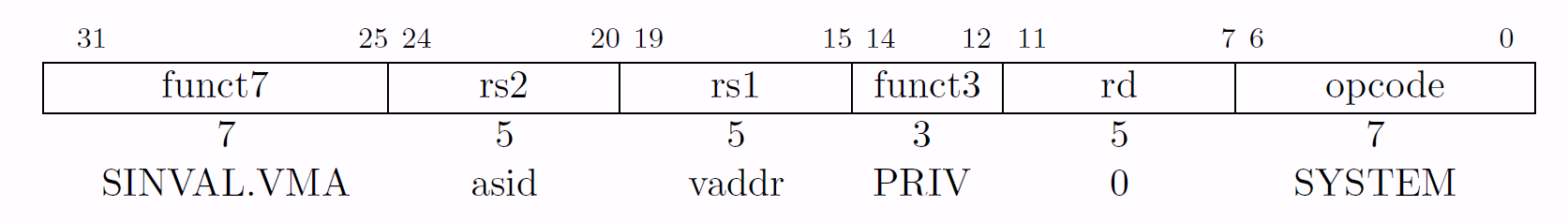

Additionally, the Xiangshan Kunminghu architecture supports the Svinval extension. The format of the Svinval.vma instruction is shown in 此图, where the meanings of rs1 and rs2 are the same as those in the Sfence.vma instruction. In the Kunminghu architecture, the internal implementation of the TLB treats the Svinval.vma and Sfence.vma instructions identically, with the TLB only accepting the incoming sfence_valid signal and the corresponding rs1 and rs2 parameters.

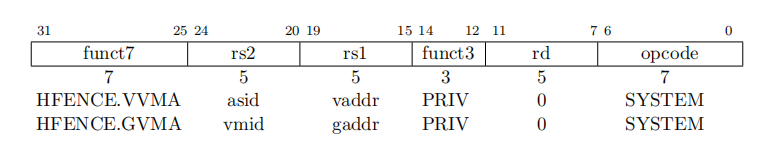

Hfence instructions include Hfence.vvma and Hfence.gvma. The execution effect of these instructions is similar to Sfence.vma, first writing all contents of the Store Buffer back to DCache, then issuing refresh signals to various parts of the MMU. The refresh signal is unidirectional, lasting only one clock cycle with no return signal. The instruction finally flushes the entire pipeline, restarting execution from the fetch stage. It cancels all inflight requests, including those in Repeater and Filter, as well as inflight requests in L1TLB and L2 TLB. Hfence.vvma refreshes page tables related to VSATP in L1TLB and L2TLB based on address, ASID, and VMID, while Hfence.gvma refreshes page tables related to HGATP in L1TLB and L2TLB based on address and VMID.

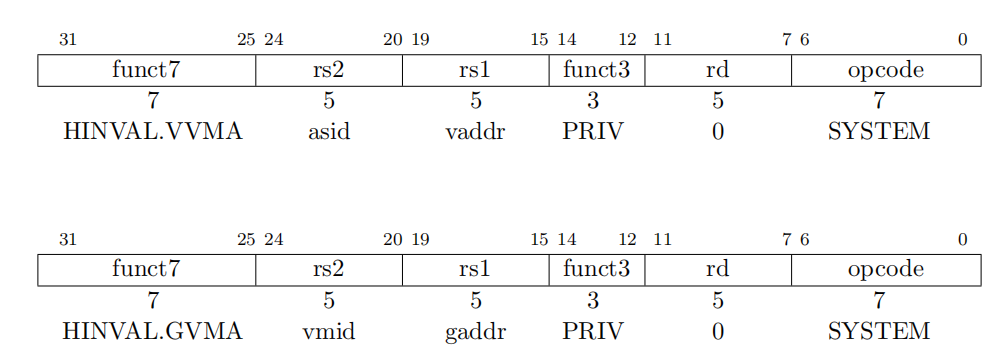

Additionally, since the Kunminghu architecture supports the Svinval extension, it includes the hinval.vvma and hinval.gvma instructions, which correspond to the two hfence instructions respectively.

Supports ASID and VMID

The Xiangshan Kunminghu architecture supports ASIDs (Address Space Identifiers) with a length of 16, stored in the SATP register. The format of the SATP register is shown in 此表.

SATP Register Format
bit	field	Description
[63:60]	MODE	indicates the address translation mode. When this field is 0, it is Bare mode, with no address translation or protection enabled. When this field is 8, it represents the Sv39 address translation mode. If this field has any other value, an illegal instruction fault is reported.
[59:44]	ASID	Address Space Identifier. The length of ASID is configurable as a parameter. For the Sv39 address translation mode adopted by the Xiangshan Kunminghu architecture, the maximum length of ASID is 16.
[43:0]	PPN	Represents the physical page number of the root page table, obtained by right-shifting the physical address by 12 bits.

Note that in virtualization mode, SATP is replaced by the VSATP register, and its PPN field represents the guest physical page number of the guest root page table, not the actual physical address. Second-stage translation is required to obtain the real physical address.

The Xiangshan Kunming Lake architecture supports a 14-bit VMID (Virtual Machine Identifier), stored in the HGATP register. The format of the HGATP register is shown in 此表.

HGATP Register Format
bit	field	Description
[63:60]	MODE	Indicates the address translation mode. When this field is 0, it is Bare mode with no address translation or protection enabled. A value of 8 represents Sv39x4 address translation mode. Any other value will trigger an illegal instruction fault.
[57:44]	VMID	Virtual machine identifier. For the Sv39x4 address translation mode adopted by the Xiangshan Kunminghu architecture, the maximum VMID length is 14.
[43:0]	PPN	Represents the physical page number of the root page table for the second-stage translation, obtained by right-shifting the physical address by 12 bits.

Support software update A/D bits

Xiangshan supports software management of A/D bits in page tables. The A bit indicates that the page has been read, written, or fetched since the last time the A bit was cleared. The D bit indicates that the page has been written since the last time the D bit was cleared. The manual allows updating A/D bits through either software or hardware methods. Xiangshan opts for the software approach, triggering a page fault under the following two conditions to update the page table via software.

accessing a page where the A bit of its page table is 0
Writing to a page where the D bit of its page table entry is 0.

Note that the current Xiangshan Kunminghu architecture does not support hardware updates to the A/D bits.

Supports exception handling mechanism

When PMP or PMA checks report an access fault, or in cases of page fault or guest page fault, the TLB module will return exceptions to the Frontend via ITLB or to the Memblock via DTLB, depending on the source of the PTW request. The types of exceptions the TLB module may return to the Frontend and Memblock are listed in Table 3.3, with Memblock further divided into LoadUnit, AtomicsUnit, and StoreUnit. The TLB module is only responsible for returning access faults, page faults, or guest page faults to the Frontend or Memblock, with subsequent handling performed by the Frontend or Memblock. For a summary and explanation of exception handling, refer to Exception Handling Mechanism.

Types of Exceptions Returned by TLB
type	destination	Description
pf_instr	Frontend	Indicates an instruction page fault has occurred.
af_instr	Frontend	Indicates an instruction access fault occurred
gpf_instr	Frontend	Indicates an instruction guest page fault has occurred.
pf_ld	LoadUnit or AtomicsUnit	Indicates a load page fault occurred
af_ld	LoadUnit or AtomicsUnit	indicates a load access fault occurred
gpf_ld	LoadUnit or AtomicsUnit	Indicates a load guest page fault has occurred.
pf_st	StoreUnit or AtomicsUnit	Indicates a store page fault occurred
af_st	StoreUnit or AtomicsUnit	Indicates a store access fault occurred
gpf_st	StoreUnit or AtomicsUnit	Indicates a store guest page fault has occurred.

Exception Handling Mechanism

The MMU module may generate exceptions including: guest page fault, page fault, access fault, and ECC check errors in the L2 TLB Page Cache. The ITLB, DTLB, and L2 TLB can all generate guest page fault, page fault, and access fault. For exceptions generated by ITLB and DTLB, they are handled by the module that sent the physical address query based on the request source. ITLB exceptions are delivered to Icache or IFU; DTLB exceptions are delivered to LoadUnits, StoreUnits, or AtomicsUnit for processing.

If the L2 TLB encounters a guest page fault, page fault, or access fault, it does not directly handle the exception. Instead, it returns the information to the L1 TLB. Upon detecting such faults during a query, the L1 TLB generates different types of exceptions based on the request's cmd and delivers them to the respective modules for processing according to the request source.

The Page Cache in L2 TLB supports ECC checking. If an ECC error is detected, it does not raise an exception but sends a miss signal to the L2 TLB for that request. Meanwhile, the Page Cache refreshes the entry with the ECC error and reissues a PTW request for Page Walk.

In other words, the MMU module only handles ECC check errors for the Page Cache in the L2 TLB. Any page faults or access faults generated are handed over to the front-end or back-end pipeline for processing.

Possible exceptions and the MMU module's handling process are shown in 此表:

Possible MMU exceptions and handling procedures
module	Possible Exceptions	processing flow
ITLB
	Generate inst page fault	Deliver to Icache or IFU for processing based on the request source
	Generate inst guest page fault	Deliver to Icache or IFU for processing based on the request source
	Generate inst access fault	Deliver to Icache or IFU for processing based on the request source
DTLB
	Generates a load page fault	Deliver to LoadUnits for processing
	Generate load guest page fault	Deliver to LoadUnits for processing
	Generate store page fault	Deliver to StoreUnits or AtomicsUnit for processing based on the request source
	Generate store guest page fault	Deliver to StoreUnits or AtomicsUnit for processing based on the request source
	Generate a load access fault	Deliver to LoadUnits for processing
	Generate store access fault	Deliver to StoreUnits or AtomicsUnit for processing based on the request source
L2 TLB
	Generate guest page fault	Deliver to L1 TLB, which then dispatches for processing based on the request source
	Generate page fault	Deliver to L1 TLB, which then dispatches for processing based on the request source
	Generate access fault	Deliver to L1 TLB, which then dispatches for processing based on the request source
	ECC check error	Invalidate the current entry, return a miss result, and restart Page Walk.

Overall Design

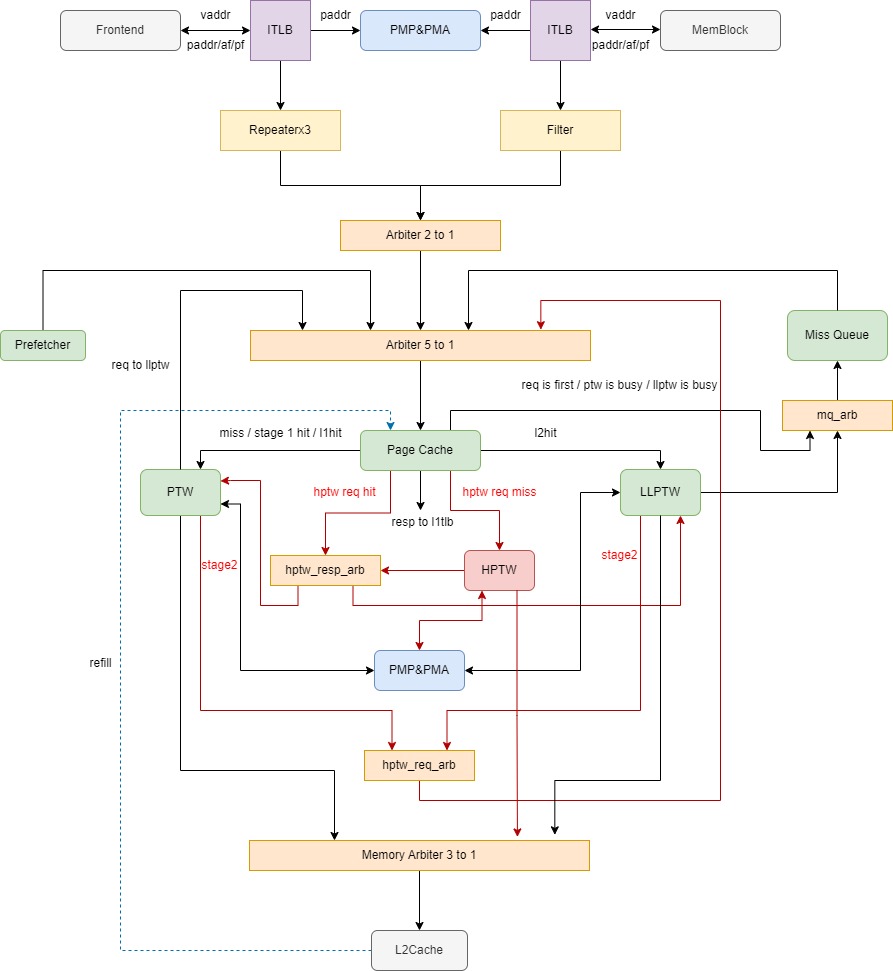

The overall architecture of the MMU is shown in 此图.

The ITLB receives PTW requests from the Frontend, and the DTLB receives PTW requests from the Memblock. PTW requests from the Frontend include 2 requests from the ICache and 1 request from the IFU. PTW requests from the Memblock include 3 requests from the LoadUnit (with the AtomicsUnit occupying 1 request channel of the LoadUnit), 1 request from the L1 Load stream & stride prefetcher, 2 requests from the StoreUnit, and 1 request from the SMSPrefetcher. The ITLB and DTLB connect to the L2 TLB via Repeaters, all using non-blocking access. Based on the pipeline function, these Repeaters add the ability to filter duplicate requests, filtering out duplicate requests sent from the L1 TLB to the L2 TLB, thus avoiding duplicate entries in the L1 TLB.

Requests from the ITLB and DTLB are first arbitrated (via a 2-to-1 Arbiter) and then access the Page Cache. For non-two-stage address translation requests, if a leaf node is hit, the result is directly returned to the L1 TLB. If not, the request is forwarded to the Page Table Walker, Last Level Page Table Walker, or Miss Queue (see Section 5.3) based on the page table level hit in the Page Cache and the availability of the Page Table Walker and Last Level Page Table Walker. Requests from the Miss Queue or Prefetcher are arbitrated (via a 3-to-1 Arbiter) alongside requests from the L1 TLB before re-accessing the Page Cache. For two-stage address translation requests: if both stages are enabled and the first-stage page table is hit, the request is sent to the PTW for second-stage translation; otherwise, it is forwarded to the PTW, LLPTW, or Miss Queue based on the first-stage hit level and their availability. If only the first stage is enabled, processing resembles non-two-stage requests. If only the second stage is enabled and the query succeeds, the result is returned to the L1 TLB; otherwise, it is sent to the PTW for second-stage translation. Additionally, the Page Cache handles isHptwReq-flagged requests (indicating second-stage translation). If such a request hits in the Page Cache, it is sent to hptw_resp_arb; if not, it is forwarded to the HPTW for querying, with results sent to hptw_resp_arb.

Both the Page Table Walker and Last Level Page Table Walker can perform the second stage of address translation. In PTW and LLPTW, if it is a two-stage address translation request, the addresses obtained from PTEs are guest physical addresses, which must undergo a second-stage translation to obtain the actual physical address before memory access. Refer to the PTW and LLPTW module descriptions for details.

Both the Page Table Walker and the Last Level Page Table Walker can send requests to memory to access page table contents. Before accessing page table contents in memory via physical addresses, the physical addresses must be checked by the PMP and PMA modules. If an access fault occurs, no request will be sent to memory. Requests from the Page Table Walker and the Last Level Page Table Walker are arbitrated (Memory Arbiter 2to1) and then sent to the L2 Cache via the TileLink bus. In addition to sending physical addresses to the L2 Cache, the L2 TLB also needs to indicate the request source via an ID. The memory access width of the L2 Cache is 512 bits, so each access returns 8 page table entries. The returned page tables from each memory access are refilled into the Page Cache.

After obtaining results from ITLB and DTLB queries, and before L2 TLB performs Page Table Walker, PMP and PMA checks are required. Due to the small size of L1 TLB, backups of PMP and PMA registers are not stored within L1 TLB but in Frontend or Memblock, providing checks for ITLB and DTLB respectively. L2 TLB has a larger area, with PMP and PMA register backups stored directly within it.

Interface list

The interface list between the MMU module and upper-level modules is shown in 此表.

MMU IO Interface List
upper module	Module Name	Instance name	Description
Frontend
	TLB	itlb	ITLB, introduced in Section 5.1
	PMP	pmp	Distributed PMP registers, introduced in Section 5.4.
	PMPChecker	PMPChecker	PMP checker, introduced in Section 5.4
	PMPChecker	PMPChecker_1	PMP checker, introduced in Section 5.4
	PMPChecker	PMPChecker_2	PMP checker, introduced in Section 5.4
	PMPChecker	PMPChecker_3	PMP checker, introduced in Section 5.4
	PTWFilter	itlbRepeater1	Repeater1 connecting the ITLB and L2 TLB, described in Section 5.2
	PTWRepeaterNB	itlbRepeater2	Repeater2 connecting ITLB and L2 TLB, introduced in Section 5.2
MemBlock
	TLBNonBlock	dtlb_ld_tlb_ld	Load DTLB, introduced in Section 5.1
	TLBNonBlock_1	dtlb_ld_tlb_st	Store DTLB, introduced in Section 5.1
	TLBNonBlock_2	dtlb_prefetch_tlb_prefetch	Prefetch DTLB, introduced in Section 5.1
	PTWNewFilter	dtlbRepeater	Repeater1 connecting DTLB and L2 TLB, introduced in Section 5.2
	PTWRepeaterNB	itlbRepeater3	Repeater3 connecting ITLB and L2 TLB, introduced in Section 5.2
	PMP_2	pmp	Distributed PMP registers, introduced in Section 5.4.
	PMPChecker_8	PMPChecker	PMP checker, introduced in Section 5.4
	PMPChecker_8	PMPChecker_1	PMP checker, introduced in Section 5.4
	PMPChecker_8	PMPChecker_2	PMP checker, introduced in Section 5.4
	PMPChecker_8	PMPChecker_3	PMP checker, introduced in Section 5.4
	PMPChecker_8	PMPChecker_4	PMP checker, introduced in Section 5.4
	PMPChecker_8	PMPChecker_5	PMP checker, introduced in Section 5.4
	L2TLBWrapper	ptw	L2 TLB, introduced in Section 5.3
	TLBuffer_20	ptw_to_l2_buffer	The buffer between the L2 TLB and L2 Cache is described in Section 5.3.

List of interfaces between L2 TLB module components and L2 TLB

L2 TLB IO Interface List
upper module	Module Name	Instance name	Description
L2TLBWrapper
	L2TLB	ptw	L2 TLB, introduced in Section 5.3
L2TLB
	PMP	pmp	Distributed PMP registers, introduced in Section 5.4.
	PMPChecker	PMPChecker	PMP checker, introduced in Section 5.4
	PMPChecker	PMPChecker_1	PMP checker, introduced in Section 5.4
	L2TlbMissQueue	missQueue	L2 TLB Miss Queue, described in Section 5.3.11
	PtwCache	cache	L2 TLB Page Table Cache, introduced in Section 5.3.7.
	PTW	ptw	L2 TLB Page Table Walker, introduced in Section 5.3.8
	LLPTW	llptw	L2 TLB Last Level Page Table Walker, introduced in Section 5.3.9
	HPTW	hptw	L2 TLB Hypervisor Page Table Walker, introduced in Section 5.3.10.
	L2TlbPrefetch	prefetch	The L2 TLB Prefetcher is introduced in Section 5.3.12.

Refer to the interface list documentation for details. Additionally, certain arbiters are involved but omitted from the interface list.

Interface timing

The overall MMU interfaces with the external environment involve the L1 TLB interfaces with Frontend and Memblock, as well as the L2 TLB interfaces with memory (L2 Cache).

The interface timing between L1 TLB and Frontend, Memblock can be found in ITLB and Frontend Interface Timing, DTLB and Memblock Interface Timing.

The timing interface between the L2 TLB and L2 Cache adheres to the TileLink bus protocol.
