Store Misalign Memory Access Unit StoreMisalignBuffer

Functional Description

The StoreMisalignBuffer stores 1 misaligned Store instruction that crosses a 16-byte boundary. The execution logic is a state machine with 7 states. When an instruction in the StoreUnit is detected as misaligned and crossing a 16-byte boundary, it requests entry into the StoreMisalignBuffer. The StoreMisalignBuffer latches this Store and splits it into two Store memory flows, which are then re-entered into the StoreUnit.

StoreMisalignBuffer collects Store accesses initiated by itself. After both Store accesses complete, if it is a non-page-crossing misalignment, it writes back. Scalar misaligned writeback to the backend must occur when StoreUnit 1 does not enable scalar writeback. If not satisfied, StoreMisalignBuffer writeback to the backend is blocked. Vector misaligned writeback to VSMergeBuffer must occur when StoreUnit 1 does not enable vector scalar writeback. If not satisfied, StoreMisalignBuffer writeback to VSMergeBuffer is blocked.

For Stores that cross 4K pages, we require that the instruction can only execute when it reaches the head of the Rob. If an older Store enters the StoreMisalignBuffer during this time, it will evict the current cross-4K-page Store and set the needFlushPipe flag to true. When a Store finally writes back, we generate a redirect.

For vectors, when a vector Store flow is evicted, it notifies VSMergeBuffer to mark the corresponding entry as needRsReplay, causing the uop to be resent.

Feature 1: Supports split memory access for unaligned Stores crossing 16Byte boundaries

Different transitions occur based on the executed flow. The state machine will enter the s_req state after the first flow is written back, then send the second flow. If the first flow carries an exception written back to StoreMisalignBuffer, it directly sends the exception information to the backend without executing the second flow. Any flow writeback may trigger a replay for any reason, and StoreMisalignBuffer will resend that flow to StoreUnit regardless of the replay cause.

• The sb instruction can never cause misalignment.

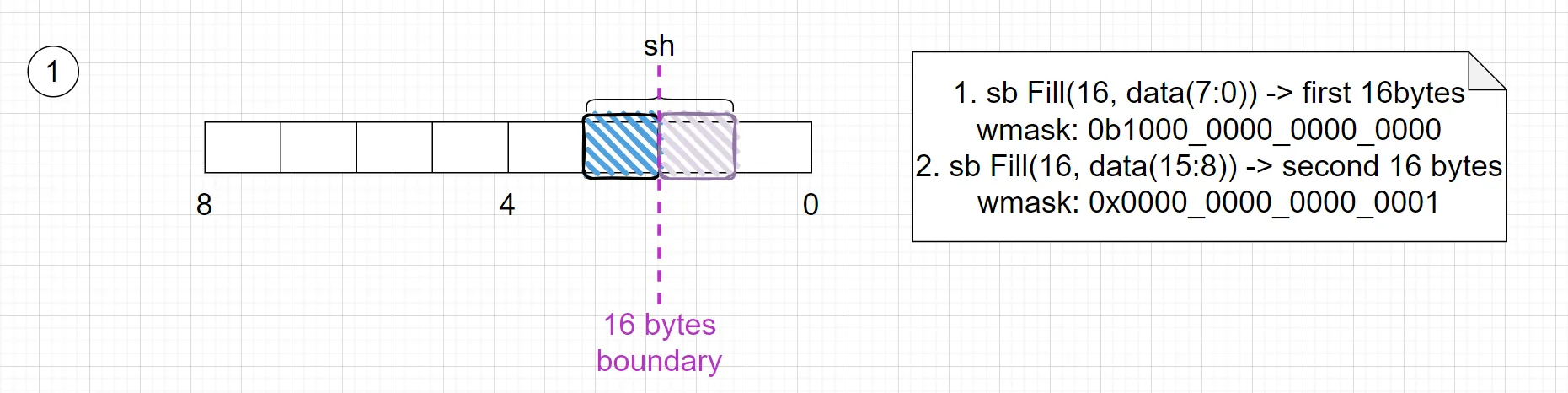

• An sh operation is split into two corresponding sb operations:

alt text

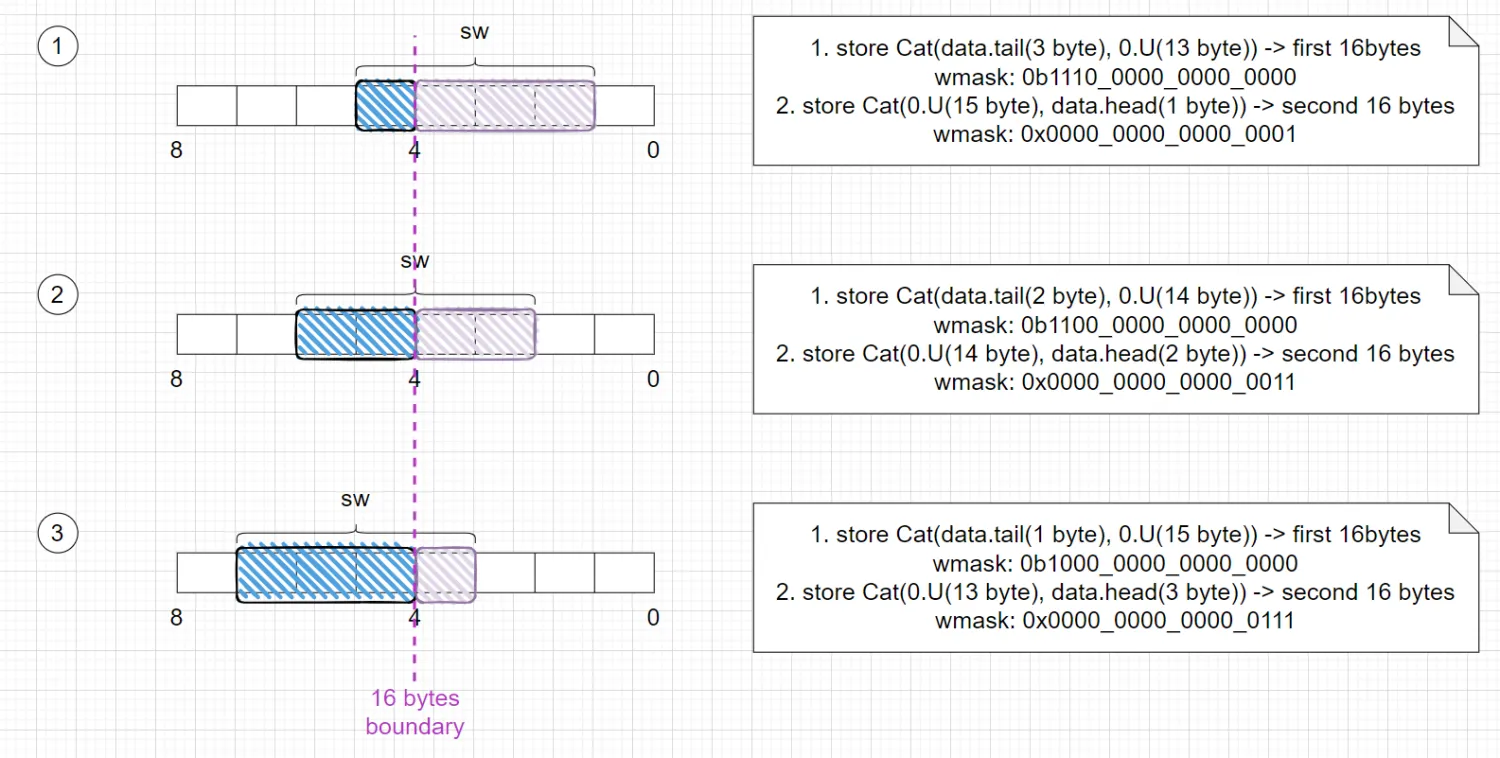

• sw varies based on address splitting methods:

alt text

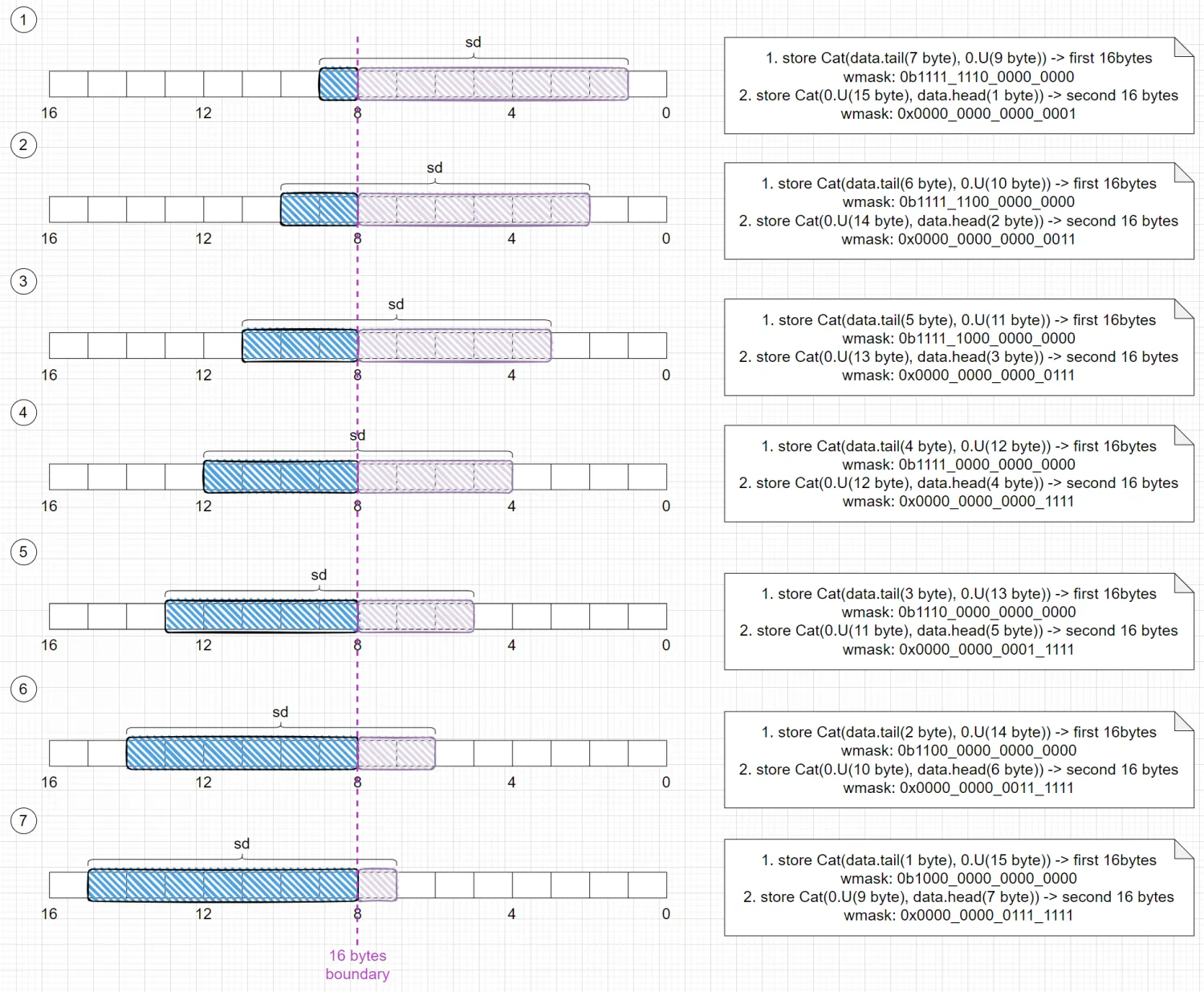

• sd varies based on address splitting methods:

alt text

Feature 2: Supports vector unaligned operations

The vector misaligned flow is handled similarly to the scalar misaligned flow, with the difference being that the vector writes back to the VSMergeBuffer, while the scalar writes back directly to the backend.

Feature 3: Does not support unaligned Store to non-Memory space

Misaligned Stores in non-Memory spaces are not supported. A StoreAddrMisalign exception is raised if a Store in a non-Memory space is misaligned.

Feature 4: Supports Cross-Page Store

Since Store operations need to write to the Sbuffer, in cases of cross-page access, two physical addresses are generated. The physical address of the lower page can reside in the StoreQueue, while the physical address of the higher page requires separate storage. We opt to store it in the StoreMisalignBuffer. Consequently, for cross-page Store operations, we must wait until the instruction is committed from the Store Queue to the Sbuffer before clearing the corresponding entry in the StoreMisalignBuffer. Therefore, we provide the StoreQueue with the metadata and address currently latched in the StoreMisalignBuffer for write-back purposes. Specifically, we determine whether to latch and retain the current Store metadata based on signals received from the rob and StoreQueue.

Overall Block Diagram

alt text

Status Introduction

Status	Description
s_idle	Waiting for unaligned Store uop to enter
s_split	Split unaligned Store
s_req	Dispatch the split misaligned Store operations to the StoreUnit.
s_resp	StoreUnit Writeback
s_wb	Write back to backend or VSMergeBuffer
s_block	Block the instruction from dequeuing until the Store Queue writes the entry to the Sbuffer.

Main ports

	Direction	Description
redirect	In	Redirect port
req	In	Receives enqueue requests from StoreUnit
rob	In	Receive relevant metadata information from Rob
splitStoreReq	Out	Memory access requests of split flows sent to StoreUnit
splitStoreResp	In	Receives the memory response of the split flows written back by the StoreUnit.
writeBack	out	Scalar misaligned write-back to the backend.
vecWriteBack	Out	Vector misaligned writeback to VSMergeBuffer
StoreOutValid	In	The Store Unit has a Store instruction that is about to write back to the backend.
StoreVecOutValid	In	The Store Unit has Vector Store instructions pending write-back to the VSMergeBuffer
overwriteExpBuf	Out	Dangling
sqControl	In/Out	Interface for interaction with Store Queue
toVecStoreMergeBuffer	Out	Send flush-related information to VSMergeBuffer

Interface timing

The interface timing is relatively simple, described only in text.

	Description
redirect	Has Valid status. Data is valid when Valid is asserted.
req	Includes Valid and Ready signals. Data is valid when Valid && Ready.
rob	No Valid signal; data is always considered valid, and responses are generated as soon as the corresponding signal is present.
splitStoreReq	Includes Valid and Ready signals. Data is valid when Valid && Ready.
splitStoreResp	Has Valid status. Data is valid when Valid is asserted.
writeBack	Includes Valid and Ready signals. Data is valid when Valid && Ready.
vecWriteBack	Includes Valid and Ready signals. Data is valid when Valid && Ready.
StoreOutValid	No Valid signal; data is always considered valid, and responses are generated as soon as the corresponding signal is present.
StoreVecOutValid	No Valid signal; data is always considered valid, and responses are generated as soon as the corresponding signal is present.
overwriteExpBuf	Dangling
sqControl	No Valid signal; data is always considered valid, and responses are generated as soon as the corresponding signal is present.
toVecStoreMergeBuffer	No Valid signal; data is always considered valid, and responses are generated as soon as the corresponding signal is present.
