MissUnit submodule documentation
The MissUnit handles ICache miss requests, manages them through MSHR, interacts with the L2 Cache via the Tilelink bus, and is responsible for sending write requests to the MetaArray and DataArray, as well as sending responses to the MainPipe.

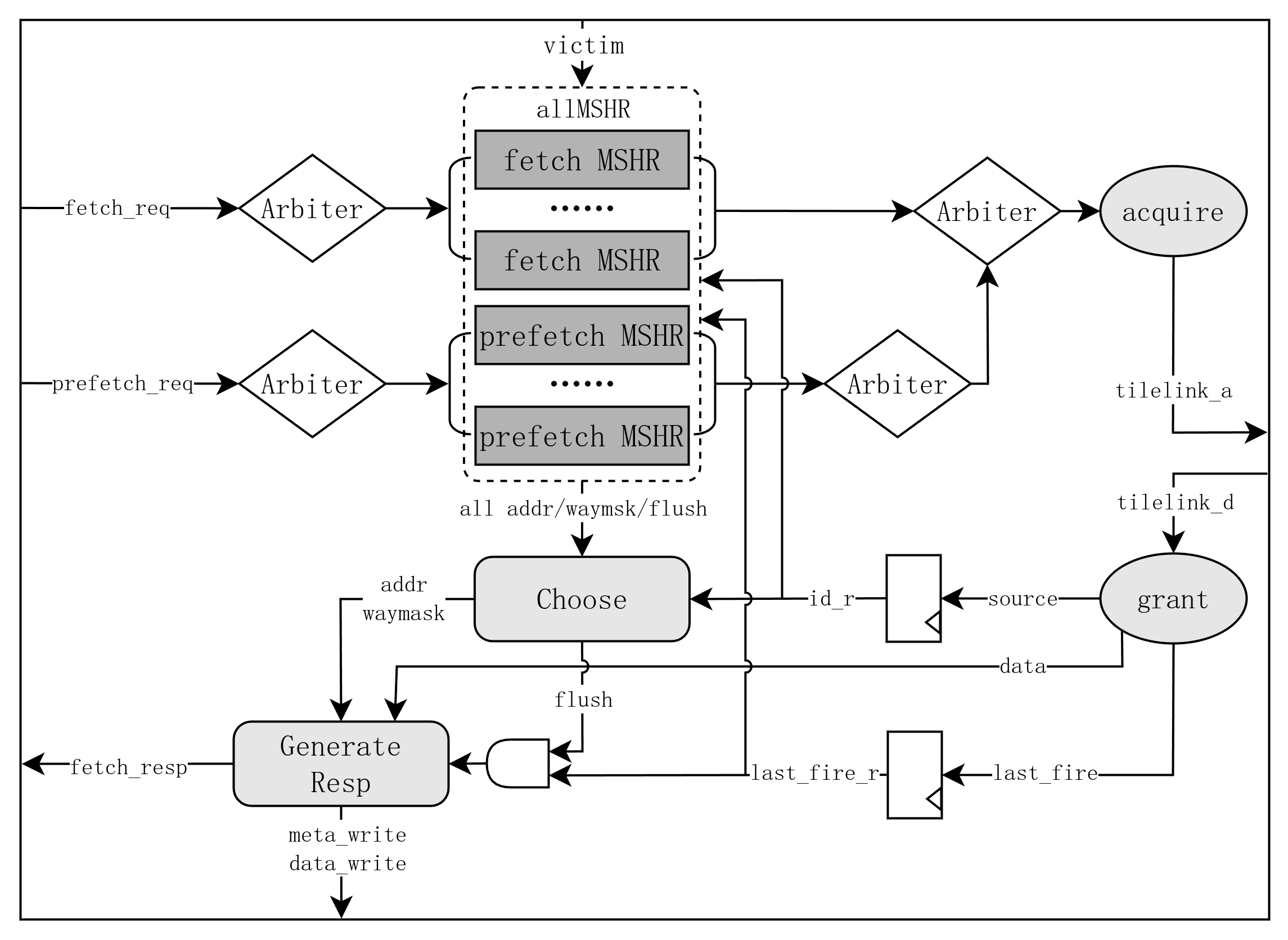

MSHR management
The MissUnit manages fetch requests and prefetch requests separately through MSHRs. To ensure fetch MSHRs can be fully released during a flush, the number of fetch MSHRs is set to 4, and prefetch MSHRs to 10. A design separating data and address is used, with all MSHRs sharing a set of data registers, while only storing address information in the MSHRs.
Request enqueue
The MissUnit receives fetch requests from the MainPipe and prefetch requests from the IPrfetchPipe. Fetch requests can only be assigned to fetchMSHRs, and prefetch requests to prefetchMSHRs, using a lower-index-first allocation strategy during enqueue. Simultaneously, the MSHR is queried during enqueue. If the request already exists in the MSHR, it is discarded, with the external interface still appearing to fire, but the request is not enqueued into the MSHR. During enqueue, a write request for the waymask is sent to the Replacer.
acquire
When the bus to L2 is idle, the MSHR entries are selected for processing. The fetchMSHR has higher priority than the prefetchMSHR, and only when there are no fetchMSHRs to process will the prefetchMSHRs be handled. For fetchMSHRs, a lower-index-first priority strategy is used because there are at most two requests to process simultaneously, and both must be completed before proceeding further, making the priority among fetchMSHRs less critical. For prefetchMSHRs, considering the temporal order of prefetch requests, a first-come-first-served priority strategy is adopted. A FIFO records the enqueue order, and processing follows this order.
grant
It interacts with the D channel of Tilelink through a state machine. The bandwidth to L2 is 32 bytes, requiring two transmissions, and different requests do not interleave, so only one set of registers is needed to store data. When a transmission completes, the corresponding MSHR is selected based on the transmission ID, and information such as address and mask is read from the MSHR. The relevant information is then written to SRAM, and the MSHR is released.
